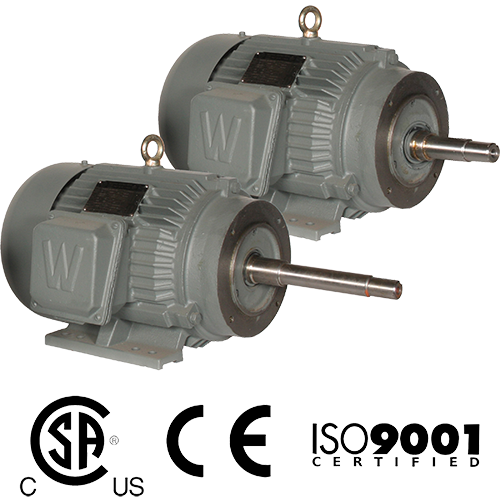

Close Coupled Pump Motors

WorldWide LV Motors

Select the following tabs to view the product data.

Features
Tech Specs
  • Features

    • 1-50 HP
    • 3600 and 1800 RPM
    • 208-230/460 volt
    • TEFC enclosure
    • 1.15 service factor
    • Class F insulation
    • C-face - Rigid base
    • High efficiency
    • Suitable for 50 hz operation with 1.0 service factor

  • Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    WWE50-18-326JP 50 1800 203-230/460 326JP TEFC 57.3 93.0 640
    WWE50-18-326JM 50 1800 203-230/460 326JM TEFC 57.3 93.0 640
    WWE50-36-326JP 50 3600 203-230/460 326JP TEFC 56.7 92.4 620
    WWE50-36-326JM 50 3600 203-230/460 326JM TEFC 56.7 92.4 620
    WWE40-18-324JP 40 1800 203-230/460 324JP TEFC 46.5 93.0 589
    WWE40-18-324JM 40 1800 203-230/460 324JM TEFC 46.5 93.0 589
    WWE40-36-324JP 40 3600 203-230/460 324JP TEFC 46.3 91.7 533
    WWE40-36-324JM 40 3600 203-230/460 324JM TEFC 46.3 91.7 533
    WWE40-36-286JP 40 3600 203-230/460 286JP TEFC 45.0 91.7 525
    WWE40-36-286JM 40 3600 203-230/460 286JM TEFC 45.0 91.7 525
    WWE30-18-286JP 30 1800 203-230/460 286JP TEFC 33.6 92.4 451
    WWE30-18-286JM 30 1800 203-230/460 286JM TEFC 33.6 92.4 451
    WWE30-36-286JP 30 3600 203-230/460 286JP TEFC 32.9 91.0 523
    WWE30-36-286JM 30 3600 203-230/460 286JM TEFC 32.9 91.0 523
    WWE25-18-284JP 25 1800 203-230/460 284JP TEFC 28.2 92.4 400
    WWE25-18-284JM 25 1800 203-230/460 284JM TEFC 28.2 92.4 400
    WWE25-36-284JP 25 3600 203-230/460 284JP TEFC 28.0 91.0 381
    WWE25-36-284JM 25 3600 203-230/460 284JM TEFC 28.0 91.0 381
    WWE25-36-256JP 25 3600 203-230/460 256JP TEFC 28.0 91.0 335
    WWE25-36-256JM 25 3600 203-230/460 256JM TEFC 28.0 91.0 335
    WWE20-18-256JP 20 1800 203-230/460 256JP TEFC 23.8 91.0 326
    WWE20-18-256JM 20 1800 203-230/460 256JM TEFC 23.8 91.0 326
    WWE20-36-256JP 20 3600 203-230/460 256JP TEFC 22.5 90.2 331
    WWE20-36-256JM 20 3600 203-230/460 256JM TEFC 22.5 90.2 331
    WWE15-18-254JP 15 1800 203-230/460 254JP TEFC 17.7 91.0 290
    WWE15-18-254JM 15 1800 203-230/460 254JM TEFC 17.7 91.0 290
    WWE15-36-254JP 15 3600 203-230/460 254JP TEFC 16.6 90.2 260
    WWE15-36-254JM 15 3600 203-230/460 254JM TEFC 16.6 90.2 260
    WWE15-36-215JP 15 3600 203-230/460 215JP TEFC 16.7 90.2 186
    WWE15-36-215JM 15 3600 203-230/460 215JM TEFC 16.7 90.2 186
    WWE10-18-215JP 10 1800 203-230/460 215JP TEFC 12.4 89.5 179
    WWE10-18-215JM 10 1800 203-230/460 215JM TEFC 12.4 89.5 179
    WWE10-36-215JP 10 3600 203-230/460 215JP TEFC 11.2 89.5 181
    WWE10-36-215JM 10 3600 203-230/460 215JM TEFC 11.2 89.5 181
    WWE7.5-18-213JP 7.5 1800 203-230/460 213JP TEFC 9.3 89.5 150
    WWE7.5-18-213JM 7.5 1800 203-230/460 213JM TEFC 9.3 89.5 150
    WWE7.5-36-213JP 7.5 3600 203-230/460 213JP TEFC 8.4 88.5 148
    WWE7.5-36-213JM 7.5 3600 203-230/460 213JM TEFC 8.4 88.5 148
    WWE7.5-36-184JP 7.5 3600 203-230/460 184JP TEFC 8.4 88.5 112
    WWE7.5-36-184JM 7.5 3600 203-230/460 184JM TEFC 8.4 88.5 112
    WWE5-18-184JP 5 1800 203-230/460 184JP TEFC 5.9 87.5 110
    WWE5-18-184JM 5 1800 203-230/460 184JM TEFC 5.9 87.5 110
    WWE5-36-184JP 5 3600 203-230/460 184JP TEFC 5.7 87.5 101
    WWE5-36-184JM 5 3600 203-230/460 184JM TEFC 5.7 87.5 101
    WWE3-18-182JP 3 1800 203-230/460 182JP TEFC 3.9 87.5 90
    WWE3-18-182JM 3 1800 203-230/460 182JM TEFC 3.9 87.5 90
    WWE3-36-182JP 3 3600 203-230/460 182JP TEFC 3.6 85.5 92
    WWE3-36-182JM 3 3600 203-230/460 182JM TEFC 3.6 85.5 92
    WWE3-36-145JP 3 3600 203-230/460 145JP TEFC 3.6 85.5 60
    WWE3-36-145JM 3 3600 203-230/460 145JM TEFC 3.6 85.5 60
    WWE2-18-145JP 2 1800 203-230/460 145JP TEFC 2.7 84.0 60
    WWE2-18-145JM 2 1800 203-230/460 145JM TEFC 2.7 84.0 60
    WWE2-36-145JP 2 3600 203-230/460 145JP TEFC 2.5 84.0 50
    WWE2-36-145JM 2 3600 203-230/460 145JM TEFC 2.5 84.0 50
    WWE1.5-18-145JP 1.5 1800 203-230/460 145JP TEFC 2.1 84.0 55
    WWE1.5-18-145JM 1.5 1800 203-230/460 145JM TEFC 2.1 84.0 55
    WWE1.5-36-143JP 1.5 3600 203-230/460 143JP TEFC 1.9 82.5 50
    WWE1.5-36-143JM 1.5 3600 203-230/460 143JM TEFC 1.9 82.5 50
    WWE1-18-143JP 1 1800 203-230/460 143JP TEFC 1.5 82.5 55
    WWE1-18-143JM 1 1800 203-230/460 143JM TEFC 1.5 82.5 55
