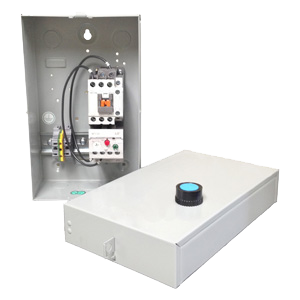

Definite Purpose Motor Starters

Across-Line Motor Starters

24 Volt coil available for all ratings

Select the following tabs to view data for the various products.

230V Single-Phase
230V Three-Phase
480V Three-Phase
Field Mod Kits
  • Tech Specs - 230V Single-Phase
    Model Coil Voltage HP Overload Current Setting FL Amps (A) Auxiliary Contacts Dimensions (in.) Box Size
    WWS0.5-2301P 230 1/2 4-6 4.9 1NO+1NC 10 x 6 x 4.63 A
    WWS0.75-2301P 230 3/4 5-8 6.9 1NO+1NC 10 x 6 x 4.63 A
    WWS1-2301P 230 1 6-9 8 1NO+1NC 10 x 6 x 4.63 A
    WWS1.5-2301P 230 1.5 9-13 10 1NO+1NC 10 x 6 x 4.63 A
    WWS2-2301P 230 2 9-13 12 1NO+1NC 10 x 6 x 4.63 A
    WWS3-2301P 230 3 12-18 17 1NO+1NC 10 x 6 x 4.63 A
    WWS5-2301P 230 5 22-32 28 2NO+2NC 10 x 6 x 4.63 A
    WWS7.5-2301P 230 7.5 34-50 40 2NO+2NC 10 x 6 x 4.63 B
    WWS10-2301P 230 10 46-65 50 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS0.5-2301P-120C 115 1/2 4-6 4.9 1NO+1NC 10 x 6 x 4.63 A
    WWS0.75-2301P-120C 115 3/4 5-8 6.9 1NO+1NC 10 x 6 x 4.63 A
    WWS1-2301P-120C 115 1 6-9 8 1NO+1NC 10 x 6 x 4.63 A
    WWS1.5-2301P-120C 115 1.5 9-13 10 1NO+1NC 10 x 6 x 4.63 A
    WWS2-2301P-120C 115 2 9-13 12 1NO+1NC 10 x 6 x 4.63 A
    WWS3-2301P-120C 115 3 12-18 17 1NO+1NC 10 x 6 x 4.63 A
    WWS5-2301P-120C 115 5 22-32 28 2NO+2NC 10 x 6 x 4.63 A
    WWS7.5-2301P-120C 115 7.5 34-50 40 2NO+2NC 10 x 6 x 4.63 B
    WWS10-2301P-120C 115 10 46-65 50 2NO+2NC 13.25 x 7.38 x 6.13 B
  • Tech Specs - 230V Three-Phase
    Model Coil Voltage HP Overload Current Setting FL Amps (A) Auxiliary Contacts Dimensions (in.) Box Size
    WWS1-230 230 1 4-6 4.2 1NO+1NC 10 x 6 x 4.63 A
    WWS1.5-230 230 1.5 5-8 6 1NO+1NC 10 x 6 x 4.63 A
    WWS2-230 230 2 6-9 6.8 1NO+1NC 10 x 6 x 4.63 A
    WWS3-230 230 3 7-10 9.6 1NO+1NC 10 x 6 x 4.63 A
    WWS5-230 230 5 12-18 15.2 1NO+1NC 10 x 6 x 4.63 A
    WWS7.5-230 230 7.5 18-25 22 1NO+1NC 10 x 6 x 4.63 A
    WWS10-230 230 10 22-32 28 1NO+1NC 10 x 6 x 4.63 A
    WWS15-230 230 15 34-50 42 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS20-230 230 20 45-65 54 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS25-230 230 25 54-75 68 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS30-230 230 30 70-95 80 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS40-230 230 40 95-130 104 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS50-230 230 50 110-150 130 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS1-230-120C 115 1 4-6 4.2 1NO+1NC 10 x 6 x 4.63 A
    WWS1.5-230-120C 115 1.5 5-8 6 1NO+1NC 10 x 6 x 4.63 A
    WWS2-230-120C 115 2 6-9 6.8 1NO+1NC 10 x 6 x 4.63 A
    WWS3-230-120C 115 3 7-10 9.6 1NO+1NC 10 x 6 x 4.63 A
    WWS5-230-120C 115 5 12-18 15.2 1NO+1NC 10 x 6 x 4.63 A
    WWS7.5-230-120C 115 7.5 18-25 22 1NO+1NC 10 x 6 x 4.63 A
    WWS10-230-120C 115 10 22-32 28 1NO+1NC 10 x 6 x 4.63 A
    WWS15-230-120C 115 15 34-50 42 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS20-230-120C 115 20 45-65 54 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS25-230-120C 115 25 54-75 68 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS30-230-120C 115 30 70-95 80 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS40-230-120C 115 40 95-130 104 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS50-230-120C 115 50 110-150 130 2NO+2NC 20.25 x 8.75 x 7.31 C
  • Tech Specs - 480V Three-Phase
    Model Coil Voltage HP Overload Current Setting FL Amps (A) Auxiliary Contacts Dimensions (in.) Box Size
    WWS1-480 480 1 1.6-2.5 2.1 1NO+1NC 10 x 6 x 4.63 A
    WWS2-480 480 2 2.5-4 3.4 1NO+1NC 10 x 6 x 4.63 A
    WWS3-480 480 3 4-6 4.8 1NO+1NC 10 x 6 x 4.63 A
    WWS5-480 480 5 6-9 7.6 1NO+1NC 10 x 6 x 4.63 A
    WWS7.5-480 480 7.5 9-13 11 1NO+1NC 10 x 6 x 4.63 A
    WWS10-480 480 10 12-18 14 1NO+1NC 10 x 6 x 4.63 A
    WWS15-480 480 15 18-25 21 1NO+1NC 10 x 6 x 4.63 A
    WWS20-480 480 20 22-32 27 2NO+2NC 10 x 6 x 4.63 A
    WWS25-480 480 25 28-40 34 2NO+2NC 10 x 6 x 4.63 A
    WWS30-480 480 30 34-50 40 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS40-480 480 40 45-65 52 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS50-480 480 50 54-75 65 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS60-480 480 60 63-85 77 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS75-480 480 75 80-100 96 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS100-480 480 100 110-150 124 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS1-480-120C 115 1 1.6-2.5 2.1 1NO+1NC 10 x 6 x 4.63 A
    WWS2-480-120C 115 2 2.5-4 3.4 1NO+1NC 10 x 6 x 4.63 A
    WWS3-480-120C 115 3 4-6 4.8 1NO+1NC 10 x 6 x 4.63 A
    WWS5-480-120C 115 5 6-9 7.6 1NO+1NC 10 x 6 x 4.63 A
    WWS7.5-480-120C 115 7.5 9-13 11 1NO+1NC 10 x 6 x 4.63 A
    WWS10-480-120C 115 10 12-18 14 1NO+1NC 10 x 6 x 4.63 A
    WWS15-480-120C 115 15 18-25 21 1NO+1NC 10 x 6 x 4.63 A
    WWS20-480-120C 115 20 22-32 27 2NO+2NC 10 x 6 x 4.63 A
    WWS25-480-120C 115 25 28-40 34 2NO+2NC 10 x 6 x 4.63 A
    WWS30-480-120C 115 30 34-50 40 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS40-480-120C 115 40 45-65 52 2NO+2NC 13.25 x 7.38 x 6.13 B
    WWS50-480-120C 115 50 54-75 65 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS60-480-120C 115 60 63-85 77 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS75-480-120C 115 75 80-100 96 2NO+2NC 20.25 x 8.75 x 7.31 C
    WWS100-480-120C 115 100 110-150 124 2NO+2NC 20.25 x 8.75 x 7.31 C
  • Field Modification Kits
    Model Description Box Size
    WWS-SS-A Start/Stop Pushbutton Kit (Double Headed Style) A
    WWS-SS-B Start/Stop Pushbutton Kit (Double Headed Style) B
    WWS-SS-C Start/Stop Pushbutton Kit (Double Headed Style) C
    WWS-HOA-A H-O-A Switch Kit (3 Position) A
    WWS-HOA-B H-O-A Switch Kit (3 Position) B
    WWS-HOA-C H-O-A Switch Kit (3 Position) C
    WWS-RS-A Reset Pushbutton Kit A
    WWS-RS-BC Reset Pushbutton Kit B,C
