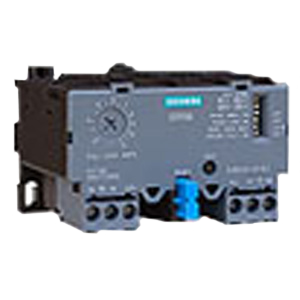

ESP200 Solid State Electronic Overload Relays

Across-Line Motor Starters

The field selectable Trip Class 5, 10, 20 or 30 can easily be set by 2 DIP switches. This eliminates the guess factor of application requirements and provides reduced inventory for multiple applications.

ESP200 has a 4:1 current adjustment range with a fine adjustment dial labelled in full load amps. The heater-less overload minimizes the heat trapped in the enclosures, reduces cost for ventilation or cooling. Easily accessible reset button provides visible and audible indications to ensure the tripped overload is ready to restart.

ESP200 can be directly coupled to the contactors or remotely mounted. In addition to the NEMA contactor applications, it also can be used with other types of controllers for applications requiring DP or IEC contactors.

• (1) Requires use of 300:5 current transformers - 3 of 97CT004
• (2) Requires use of 400:5 current transformers - 3 of 97CT006
• (3) Requires use of 600:5 current transformers - 3 of 97CT008
• (4) Requires use of 750:5 current transformers - 3 of 97CT009
• (5) Requires use of 1200:5 current transformers - 3 of 97CT012

Select the following tabs to view data for the various products.

  • Features

    • Selectable Trip Classes: 5, 10, 20 and 30
    • Manual, automatic, and remote reset
    • Phase loss protection - trips in less than 3 seconds
    • Phase unbalance protection - trips based on trip class selected (minimize temperature rise of the motor on an asymmetrical three-phase system)
    • Thermal memory (prevents restarting the motor when it is hot)
    • Ground fault protection - trips 60% of motor current
    • Ambient insensitive (prevents nuisance tripping)
    • FLA dial with wide adjustment range - 4:1 ratio
    • One NO and one NC contacts standard
    • Self-powered - no separate source required
    • Self-protected in short circuit condition
    • No heaters required (saves cost and eliminates time for installation)
    • Test button - tests electronics
    • Conformally coated circuit board
    • Repeat trip accuracy <1%
    • Visible trip indicator
    • DIN Rail Mounted
    • Touch-safe terminals
    • Removable terminals

  • Technical Specifications
    Model Phase Overload Amp Range Frame Size
    3UB81134AB2 3 0.25-1 A
    3UB81134BB2 3 0.75-3.4 A
    3UB81234CW2 3 3-12 A1
    3UB81234DW2 3 5.5-22 A1
    3UB81234EW2 3 10-40 A1
    3UB81334FW2 3 13-52 B
    3UB81334GW2 3 25-100 B
    3UB81334HW2 3 50-200 B
    3UB81234JW2 3 100-300 A1 (1)
    3UB81234KW2 3 133-400 A1 (2)
    3UB81234LW2 3 200-600 A1 (3)
    3UB81234MW2 3 250-750 A1 (4)
    3UB81234NW2 3 400-1220 A1 (5)
    3UB88134AB2 1 0.25-1 A
    3UB88134BB2 1 0.75-3.4 A
    3UB88234CW2 1 3-12 A1
    3UB88234DW2 1 5.5-22 A1
  • Current Transformers
    Model Overload Model Rating
    97CT004 3UB81234JW2 300:5
    97CT006 3UB81234KW2 400:5
    97CT008 3UB81234LW2 600:5
    97CT009 3UB81234MW2 750:5
    97CT012 3UB81234NW2 1200:5
