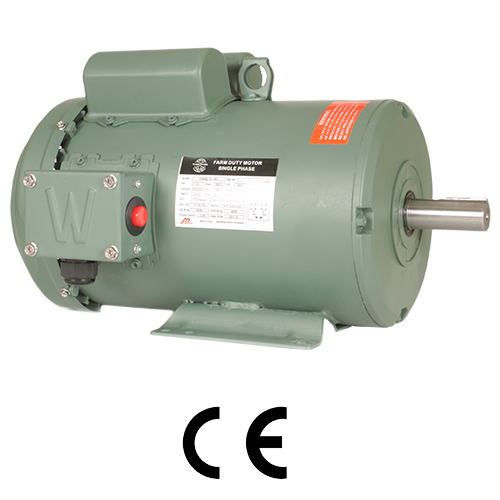

Farm Duty

WorldWide LV Motors

Select the following tabs to view the product data.

Click the model number for a model-specific downloadable PDF (when available).

Features
Tech Specs
  • Features

    • 2-10 HP
    • 1800 RPM
    • 208-230 volt
    • TEFC enclosure (IP55)
    • 1.15 service factor
    • Class F insulation
    • Rigid base
    • High efficiency
    • Shaft seals on both ends of the motor
    • With manual overload

  • Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    FARM2-18-182T 2 1800 208-230 182T TEFC 8.5 82.5 78
    FARM3-18-184T 3 1800 208-230 184T TEFC 12.9 81.5 84
    FARM5-18-184T 5 1800 208-230 184T TEFC 21.2 81 93
    FARM7.5-18-215TZ 7.5 1800 208-230 215TZ TEFC 31.2 85.9 159
    FARM10-18-215T 10 1800 208-230 215T TEFC 39.4 87.2 187
