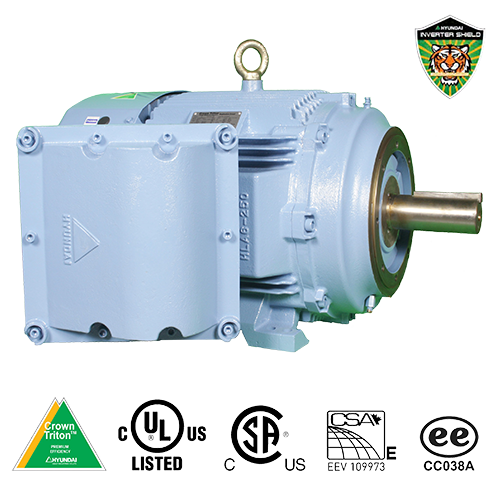

Explosion-Proof C-Face

Hyundai LV Motors

Available in the following varieties:
• Rigid Base (standard)
• Inverter Duty

Select the following tabs to view data for the various products.

Click the model number for a model-specific downloadable PDF (when available).

  • Rigid Base Features

    • 2-100 HP, 1800 RPM
    • 75-100 HP, 3600 RPM
    • 208-230/460 volt
    • TEXP enclosure
    • 1.15 service factor
    • Class F insulation with Class N varnish
    • Class B temperature rise
    • C-face - Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage
    • Suitable for wye-delta start (15-100 HP)
    • Unique multiple rating system for 40°C and 55°C ambient:
      - 143T-215T: T2C at 40°C, T2B at 55°C, T4 when thermostat is connected
      - 254T-286T: T2D at 40°C, T2C at 55°C, T4 when thermostat is connected
      - 324T-405T: T3 at 40°C, T2D at 55°C, T4 when thermostat is connected
    • Class I, Division 1, Groups C & D, UL Certification
    • CC # 038A
    • CSA Energy Certified
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)

  • Rigid Base Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    XHHI2-18-145TC 2 1800 208-230/460 145TC TEXP 3 86.5 66
    XHHI3-18-182TC 3 1800 208-230/460 182TC TEXP 3.9 89.5 112
    XHHI5-18-184TC 5 1800 208-230/460 184TC TEXP 6.5 89.5 121
    XHHI7.5-18-213TC 7.5 1800 208-230/460 213TC TEXP 9.5 91.7 160
    XHHI10-18-215TC 10 1800 208-230/460 215TC TEXP 12.8 91.7 180
    XHHI15-18-254TC 15 1800 208-230/460 254TC TEXP 18.3 92.4 310
    XHHI20-18-256TC 20 1800 208-230/460 256TC TEXP 24.8 93 350
    XHHI25-18-284TC 25 1800 208-230/460 284TC TEXP 30.3 93.6 440
    XHHI30-18-286TC 30 1800 208-230/460 286TC TEXP 36 93.6 480
    XHHI40-18-324TC 40 1800 208-230/460 324TC TEXP 48.8 94.1 820
    XHHI50-18-326TC 50 1800 208-230/460 326TC TEXP 59.9 94.5 840
    XHHI60-18-364TC 60 1800 208-230/460 364TC TEXP 69.9 95 1113
    XHHI75-36-365TSC 75 3600 208-230/460 365TSC TEXP 79.8 94.5 1087
    XHHI75-18-365TC 75 1800 208-230/460 365TC TEXP 85.1 95.4 1153
    XHHI100-36-405TSC 100 3600 208-230/460 405TSC TEXP 110.1 94.5 1852
    XHHI100-18-405TC 100 1800 208-230/460 405TC TEXP 114.1 95.4 1830
  • Inverter Duty Features

    • 2-100 HP, 1800 RPM
    • 75-100 HP, 3600 RPM
    • 208-230/460 volt
    • TEXP enclosure
    • 1.15 service factor
    • Class F insulation with Class N varnish
    • Class B temperature rise
    • C-face - Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage
    • Suitable for wye-delta start (15-100 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Unique multiple rating system for 40°C and 55°C ambient:
      - 143T-215T: T2C at 40°C, T2B at 55°C, T4 when thermostat is connected
      - 254T-286T: T2D at 40°C, T2C at 55°C, T4 when thermostat is connected
      - 324T-405T: T3 at 40°C, T2D at 55°C, T4 when thermostat is connected
    • Class I, Division 1, Groups C & D, UL Certification
    • CC # 038A
    • CSA Energy Certified
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)

  • Inverter Duty Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    IXHHI2-18-145TC 2 1800 208-230/460 145TC TEXP 3 86.5 66
    IXHHI3-18-182TC 3 1800 208-230/460 182TC TEXP 3.9 89.5 112
    IXHHI5-18-184TC 5 1800 208-230/460 184TC TEXP 6.5 89.5 121
    IXHHI7.5-18-213TC 7.5 1800 208-230/460 213TC TEXP 9.5 91.7 160
    IXHHI10-18-215TC 10 1800 208-230/460 215TC TEXP 12.8 91.7 180
    IXHHI15-18-254TC 15 1800 208-230/460 254TC TEXP 18.3 92.4 310
    IXHHI20-18-256TC 20 1800 208-230/460 256TC TEXP 24.8 93 350
    IXHHI25-18-284TC 25 1800 208-230/460 284TC TEXP 30.3 93.6 440
    IXHHI30-18-286TC 30 1800 208-230/460 286TC TEXP 36 93.6 480
    IXHHI40-18-324TC 40 1800 208-230/460 324TC TEXP 48.8 94.1 820
    IXHHI50-18-326TC 50 1800 208-230/460 326TC TEXP 59.9 94.5 840
    IXHHI60-18-364TC 60 1800 208-230/460 364TC TEXP 69.9 95 1113
    IXHHI75-36-365TSC 75 3600 208-230/460 365TSC TEXP 79.8 94.5 1087
    IXHHI75-18-365TC 75 1800 208-230/460 365TC TEXP 85.1 95.4 1153
    IXHHI100-36-405TSC 100 3600 208-230/460 405TSC TEXP 110.1 94.5 1852
    IXHHI100-18-405TC 100 1800 208-230/460 405TC TEXP 114.1 95.4 1830
