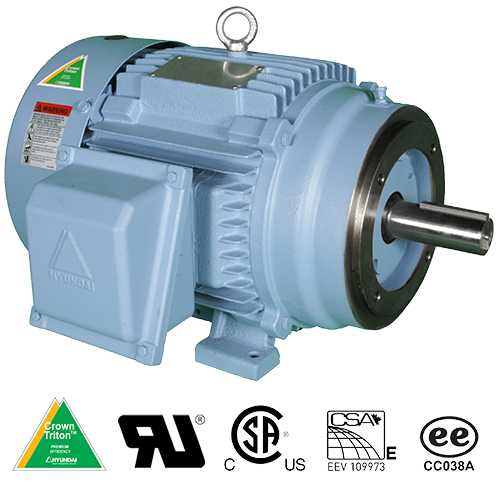

Premium Efficiency Motors - C-Face

Hyundai LV Motors

Available in the following varieties:
• Rigid Base (standard)
• Factory F2 Mount
• Round Body

Select the following tabs to view data for the various products..

Click the model number for a model-specific downloadable PDF (when available).

Rigid Base Features
Rigid Base Specs
F2 Mount Features
F2 Mount Specs
Round Features
Round Specs
  • Rigid Base Features

    • 1-200 HP
    • 3600, 1800 and 1200 RPM
    • 208-230/460 volt (1-125 HP)
    • 460 volt (150-200 HP)
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • C-face - Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (1-125 HP)
    • Suitable for wye-delta start (15-200 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324TC-449TC)
    • F2 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Rigid Base Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI1-18-143TC 1 1800 208-230/460 143TC TEFC 1.6 85.5 53
    HHI1-12-145TC 1 1200 208-230/460 145TC TEFC 1.8 82.5 55
    HHI1.5-36-143TC 1.5 3600 208-230/460 143TC TEFC 2 84 53
    HHI1.5-18-145TC 1.5 1800 208-230/460 145TC TEFC 2.2 86.5 55
    HHI2-36-145TC 2 3600 208-230/460 145TC TEFC 2.6 85.5 55
    HHI2-18-145TC 2 1800 208-230/460 145TC TEFC 3 86.5 55
    HHI3-36-182TC 3 3600 208-230/460 182TC TEFC 3.8 86.5 90
    HHI3-18-182TC 3 1800 208-230/460 182TC TEFC 3.9 89.5 90
    HHI5-36-184TC 5 3600 208-230/460 184TC TEFC 6.1 88.5 105
    HHI5-18-184TC 5 1800 208-230/460 184TC TEFC 6.5 89.5 105
    HHI5-12-215TC 5 1200 208-230/460 215TC TEFC 7.4 89.5 165
    HHI7.5-36-213TC 7.5 3600 208-230/460 213TC TEFC 9 89.5 150
    HHI7.5-18-213TC 7.5 1800 208-230/460 213TC TEFC 9.5 91.7 150
    HHI7.5-12-254TC 7.5 1200 208-230/460 254TC TEFC 10.3 91 260
    HHI10-36-215TC 10 3600 208-230/460 215TC TEFC 12 90.2 165
    HHI10-18-215TC 10 1800 208-230/460 215TC TEFC 12.8 91.7 165
    HHI10-12-256TC 10 1200 208-230/460 256TC TEFC 13.8 91 300
    HHI15-36-254TC 15 3600 208-230/460 254TC TEFC 16.9 91.7 260
    HHI15-18-254TC 15 1800 208-230/460 254TC TEFC 18.3 92.4 260
    HHI15-12-284TC 15 1200 208-230/460 284TC TEFC 19.8 91.7 380
    HHI20-36-256TC 20 3600 208-230/460 256TC TEFC 23.1 91.7 300
    HHI20-18-256TC 20 1800 208-230/460 256TC TEFC 24.8 93 300
    HHI20-12-286TC 20 1200 208-230/460 286TC TEFC 26.7 91.7 410
    HHI25-36-284TSC 25 3600 208-230/460 284TSC TEFC 28.5 91.7 380
    HHI25-18-284TC 25 1800 208-230/460 284TC TEFC 30.3 93.6 380
    HHI25-18-284TSC 25 1800 208-230/460 284TSC TEFC 30.3 93.6 380
    HHI25-12-324TC 25 1200 208-230/460 324TC TEFC 31.2 93 550
    HHI30-36-286TSC 30 3600 208-230/460 286TSC TEFC 33.8 91.7 410
    HHI30-18-286TC 30 1800 208-230/460 286TC TEFC 36 93.6 410
    HHI30-12-326TC 30 1200 208-230/460 326TC TEFC 37.1 93 560
    HHI40-18-324TC 40 1800 208-230/460 324TC TEFC 48.8 94.1 550
    HHI40-12-364TC 40 1200 208-230/460 364TC TEFC 48.8 94.1 780
    HHI50-18-326TC 50 1800 208-230/460 326TC TEFC 59.9 94.5 560
    HHI50-12-365TC 50 1200 208-230/460 365TC TEFC 60.2 94.1 840
    HHI60-18-364TC 60 1800 208-230/460 364TC TEFC 69.9 95 780
    HHI60-12-404TC 60 1200 208-230/460 404TC TEFC 71.2 94.5 1120
    HHI75-18-365TC 75 1800 208-230/460 365TC TEFC 85.1 95.4 820
    HHI75-18-365TSC 75 1800 208-230/460 365TSC TEFC 85.1 95.4 820
    HHI75-12-405TC 75 1200 208-230/460 405TC TEFC 87 94.5 1220
    HHI100-18-405TC 100 1800 208-230/460 405TC TEFC 114.1 95.4 1110
    HHI100-18-405TSC 100 1800 208-230/460 405TSC TEFC 114.1 95.4 1110
    HHI100-12-444TC 100 1200 208-230/460 444TC TEFC 116.6 95 1530
    HHI125-18-444TC 125 1800 208-230/460 444TC TEFC 142 95.4 1530
    HHI125-18-444TSC 125 1800 208-230/460 444TSC TEFC 142 95.4 1530
    HHI125-12-445TC 125 1200 208-230/460 445TC TEFC 147.7 95 1700
    HHI150-18-445TC 150 1800 460 445TC TEFC 163.8 95.8 1700
    HHI150-18-445TSC 150 1800 460 445TSC TEFC 163.8 95.8 1700
    HHI150-12-447TC 150 1200 460 447TC TEFC 169.5 95.8 1860
    HHI200-18-447TC 200 1800 460 447TC TEFC 222.4 96.2 1860
    HHI200-18-447TSC 200 1800 460 447TSC TEFC 222.4 96.2 1860
    HHI200-12-449TC 200 1200 460 449TC TEFC 231.2 95.8 2430
  • Factory F2 Mount Features

    • 20-200 HP
    • 1800 RPM
    • 208-230/460 volt (20-125 HP)
    • 460 volt (150-200 HP)
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • C-face - Rigid base
    • Factory F2 mount
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (20-125 HP)
    • Suitable for wye-delta start (20-200 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324TC-447TC)
    • F1 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Factory F2 Mount Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI20-18-256TC-F2 20 1800 208-230/460 256TC TEFC 24.8 93 300
    HHI25-18-284TC-F2 25 1800 208-230/460 284TC TEFC 30.3 93.6 380
    HHI30-18-286TC-F2 30 1800 208-230/460 286TC TEFC 36 93.6 410
    HHI40-18-324TC-F2 40 1800 208-230/460 324TC TEFC 48.8 94.1 550
    HHI50-18-326TC-F2 50 1800 208-230/460 326TC TEFC 59.9 94.5 560
    HHI60-18-364TC-F2 60 1800 208-230/460 364TC TEFC 69.9 95 780
    HHI100-18-405TC-F2 100 1800 208-230/460 405TC TEFC 114.1 95.4 1110
    HHI100-18-405TSC-F2 100 1800 208-230/460 405TSC TEFC 114.1 95.4 1110
    HHI125-18-444TC-F2 125 1800 208-230/460 444TC TEFC 142 95.4 1530
    HHI150-18-445TC-F2 150 1800 460 445TC TEFC 163.8 95.8 1700
    HHI150-18-445TSC-F2 150 1800 460 445TSC TEFC 163.8 95.8 1700
    HHI200-18-447TC-F2 200 1800 460 447TC TEFC 222.4 96.2 1860
  • Round Body Features

    • 1-40 HP
    • 1800 RPM
    • 208-230/460 volt
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • C-face - Round body
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (20-40 HP)
    • Suitable for wye-delta start (15-40 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324TC-447TC)
    • F2 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)

  • Round Body Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI1-18-143TCRD 1 1800 208-230/460 143TC TEFC 1.6 85.5 53
    HHI1.5-18-145TCRD 1.5 1800 208-230/460 145TC TEFC 2.2 86.5 55
    HHI2-18-145TCRD 2 1800 208-230/460 145TC TEFC 3 86.5 55
    HHI3-18-182TCRD 3 1800 208-230/460 182TC TEFC 3.9 89.5 90
    HHI5-18-184TCRD 5 1800 208-230/460 184TC TEFC 6.5 89.5 105
    HHI7.5-18-213TCRD 7.5 1800 208-230/460 213TC TEFC 9.5 91.7 150
    HHI10-18-215TCRD 10 1800 208-230/460 215TC TEFC 12.8 91.7 165
    HHI15-18-254TCRD 15 1800 208-230/460 254TC TEFC 18.3 92.4 260
    HHI20-18-256TCRD 20 1800 208-230/460 256TC TEFC 24.8 93 300
    HHI25-18-284TCRD 25 1800 208-230/460 284TC TEFC 30.3 93.6 380
    HHI30-18-286TCRD 30 1800 208-230/460 286TC TEFC 36 93.6 410
    HHI40-18-324TCRD 40 1800 208-230/460 324TC TEFC 48.8 94.1 550
