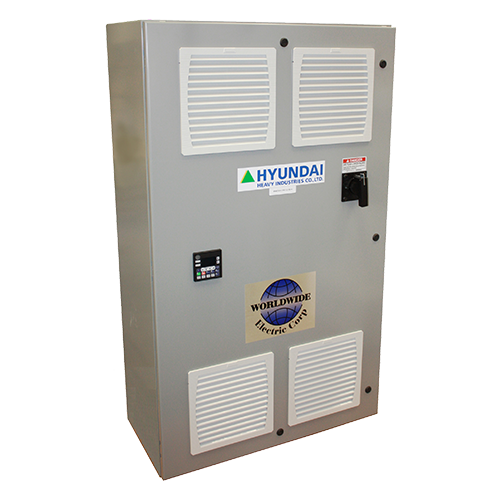

NEMA 12 Enclosure

Hyundai Standard Duty Drive Package

Select the following tabs to view the product data.

  • Features

    • 3-500 HP
    • CT and VT ratings
    • Three-phase or single-phase output
    • NEMA 12 enclosure with filter fans
    • Heavy duty mounting ears
    • Heavy duty lifting strap
    • Main CB with padlockable disconnect
    • 3% line reactor
    • Door mounted multifunctional keypad with:
      - Start / Stop buttons
      - Help button
      - Speed control buttons
      - Hand / Auto Pushbuttons
      - Plain text programming

  • Technical Specifications
    Model Voltage Constant Torque HP Constant Torque Current (A) Variable Torque HP Variable Torque Current (A)
    WWESDA-DRV12-005-4 480 5 9.2
    WWESDA-DRV12-003-4 480 3 1.5
    WWESDA-DRV12-400-4 480 400 525 450 600
    WWESDA-DRV12-300-4 480 300 415 350 450
    WWESDA-DRV12-250-4 480 250 300 300 370
    WWESDA-DRV12-200-4 480 200 260 250 285
    WWESDA-DRV12-150-4 480 150 217 200 230
    WWESDA-DRV12-125-4 480 125 176 150 195
    WWESDA-DRV12-100-4 480 100 149 125 160
    WWESDA-DRV12-075-4 480 75 110 100 135
    WWESDA-DRV12-060-4 480 60 90 75 105
    WWESDA-DRV12-050-4 480 50 75 60 85
    WWESDA-DRV12-040-4 480 40 58 50 70
    WWESDA-DRV12-030-4 480 30 45 40 57
    WWESDA-DRV12-025-4 480 25 38 30 43
    WWESDA-DRV12-020-4 480 20 32 25 37
    WWESDA-DRV12-015-4 480 15 23 20 29
    WWESDA-DRV12-010-4 480 10 16 15 22
    WWESDA-DRV12-007-4 480 7.5 12 10 15
    WWESDA-DRV12-500-4 480 500 656 550 680
