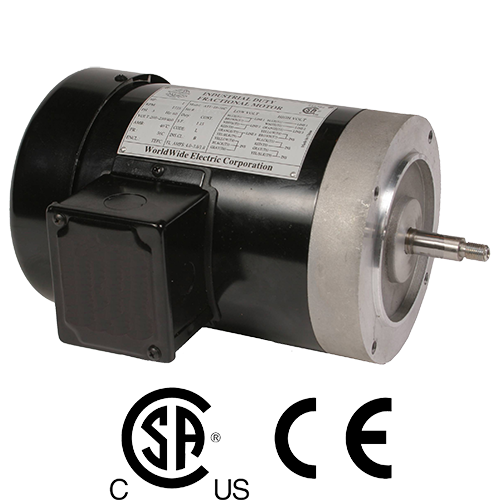

Jet Pump Three-Phase

Fractional HP Motors

Select the following tabs to view the product data.

Click the model number for a model-specific downloadable PDF (when available).

  • Features

    • 1/3-2 HP
    • 3600 RPM
    • 208-230/460 volt
    • TEFC enclosure
    • 1.15 service factor
    • Class F insulation
    • C-face - removable base
    • Threaded shaft
    • Shaft slinger to keep moisture and contaminants from the drive-end bearing
    • Inverter duty
    • Suitable for 50hz operation with 1.0 service factor

  • Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    ATJ13-36-56JB 1/3 3600 208-230/460 56J TEFC 0.8 57 22
    ATJ12-36-56JB 1/2 3600 208-230/460 56J TEFC 1.1 62 24
    ATJ34-36-56JB 3/4 3600 208-230/460 56J TEFC 1.5 67 25
    ATJ1-36-56JB 1 3600 208-230/460 56J TEFC 1.8 69 27
    ATJ1.5-36-56JB 1.5 3600 208-230/460 56J TEFC 2.3 72 30
    ATJ2-36-56JB 2 3600 208-230/460 56J TEFC 3 75 37
