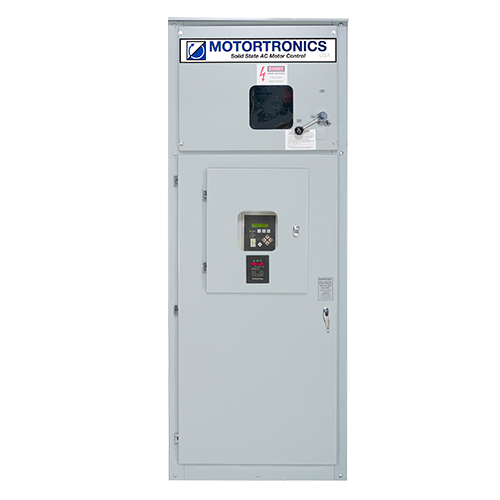

Medium Voltage - MVC Plus Series

Soft Starters

Select the following tabs to view the product data.

  • Features

    • Advanced motor protection relay and ramp features, programmable via the keypad or a laptop computer
    • Fiber optically isolated low voltage compartment with up to 110 kV BIL rating for safety and reliability
    • Built-in 120 V control power transformer*; voltage and current metering
    • Reduced load on the power supply network
    • Load-break / fault-make rated disconnect switch with door safety interlocking*
    • Visible grounding bar for safe operation
    • Coordinated motor fuses with blown fuse indicators
    • Line isolation vacuum contactor*
    • Fully rated bypass contactor for increased thermal capacity and optional across-the-line starting
    • Heavy duty SCR stack assemblies with ring transformer isolation for reliable SCR gate firing
    • RTD option accepts up to 12 RTD inputs
    • Zero sequence ground fault protection option
    • Top entry, bottom exit with room for stress cones
    • Removable entry plates for easy connections
    • NEMA 12 gasketed enclosure (NEMA 3R optional)

    * “Soft Start Only” model available for retrofit application.
    • Does not include disconnect switch, line isolation contactor or CPT. Customer supplied line start panel required.

    NOTES:
    • Motor current and service factor must be supplied on order for fuse and CT selection
    • Max. HP / kW estimate assumes motor power factory equals .8 or better, motor efficiency is .95 or better and service factor is equal to 1.15
    • Planned cable entry / exit must be verified at time of order
    • Consult WWE if UL347 labeling is required
    • Model Number MVC3-41400-ESWG-D includes GF, RTD Monitor, Space Heater and Line Fuses (Exact fuse size must be selected based on motor FLA and voltage)

  • Technical Specifications
    Model Voltage Max FLA HP kW Dimensions (in.)
    MVC4-23100-E-SWG 2300 100 350 261 92.5 x 36 x 30
    MVC4-23200-E-SWG 2300 200 700 522 92.5 x 36 x 30
    MVC4-23400-E-SWG 2300 300 1400 1044 92.5 x 36 x 30
    MVC4-23600-E-SWG 2300 630 2200 1300 92.5 x 72 x 30
    MVC4-23800-E-SWG 2300 800 2800 1600 92.5 x 72 x 30
    MVC4-41100-E-SWG 4160 100 600 448 92.5 x 36 x 30
    MVC4-41200-E-SWG 4160 200 1250 933 92.5 x 36 x 30
    MVC4-41400-E-SWG 4160 400 2500 1865 92.5 x 36 x 30
    MVC4-41600-E-SWG 4160 630 4000 2984 95 x 84 x 44
    MVC4-41800-E-SWG 4160 800 5000 3730 95 x 84 x 44
    MVC4-411000-E-SWG 4160 1000 6350 4737 95 x 84 x 80
    MVC3-41400-ESWG-D 2300/4160 400 1400/2500 1044/1865 92.5 x 36 x 30
