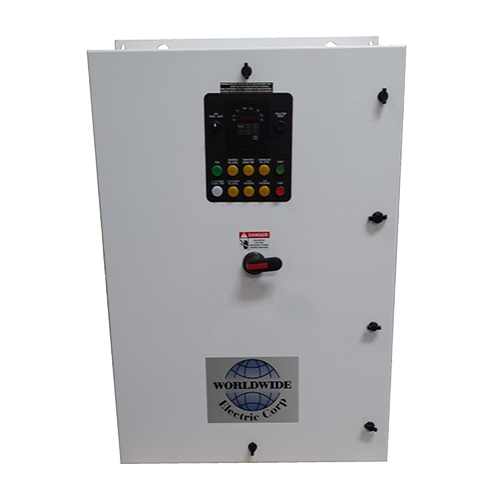

Positive Displacement Pump Softstart

Soft Starters

Select the following tabs to view the product data.

  • Features

    • 20-600 HP
    • NEMA 4 enclosure
    • Service Entrance Rated
    • 230/460V Rated
    • Advanced Motor Protection
    • Current Rated 500% for 60 Seconds
    • Full Panel Surge protection
    • CB with Door-Mounted Lockable Handle
    • Integral Full-Rated Bypass Contactor with X-Line Mode
    • Accepts inputs for up to 7 Murphy switches
      - Individually Selectable for NO or NC
      - Interposing Relays Isolation on Murphy Inputs
      - Vibration Trip, Crank Case Oil Level, Low Pressure, High Pressure, Gearbox Oil Level, Lubricator Oil Level
    • Front Panel Indicators and Keypad
    • Start/Stop, HOA, Reset buttons
    • Indicating LED's on I/O board (troubleshooting aid)

  • Technical Specifications
    Model HP @ 230V HP @ 460V Max FLA Dimensions (in.)
    WWEPDASSRV12-400 200 400 550 92 x 36 x 30
    WWEPDASSRV12-500 250 500 600 92 x 36 x 30
    WWEPDASSRV12-600 300 600 900 92 x 36 x 30
    WWEPDASSRV12-20 10 20 28 37 x 15 x 12
    WWEPDASSRV12-25 25 39 37 x 15 x 12
    WWEPDASSRV12-30 15 30 48 37 x 15 x 12
    WWEPDASSRV12-40 20 40 62 37 x 15 x 12
    WWEPDASSRV12-50 25 50 78 37 x 15 x 12
    WWEPDASSRV12-60 30 60 92 37 x 15 x 12
    WWEPDASSRV12-75 40 75 112 37 x 15 x 12
    WWEPDASSRV12-100 50 100 150 48 x 33 x 16
    WWEPDASSRV12-125 60 125 160 48 x 33 x 16
    WWEPDASSRV12-150 75 150 210 48 x 33 x 16
    WWEPDASSRV12-200 100 200 275 48 x 33 x 16
    WWEPDASSRV12-250 125 250 361 48 x 33 x 16
    WWEPDASSRV12-300 150 300 450 48 x 33 x 16
