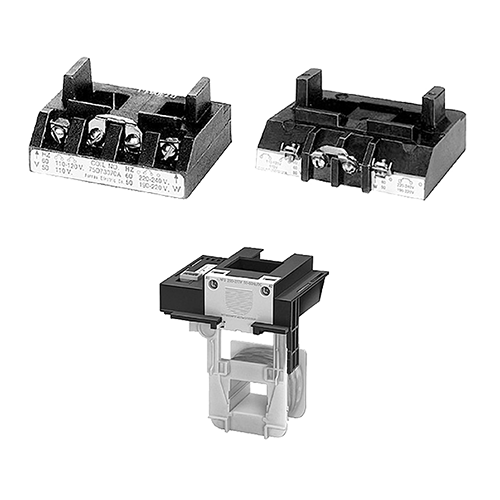

Replacement Coils
Irrigation Panels & Heavy Duty Starters
Technical Specifications
| Model | NEMA Size | Volts 60Hz | Volts 50Hz |
|---|---|---|---|
| 75D73070J | 00 - 2.5 | 24 Separate Control | 24 Separate Control |
| 75D73070F | 00 - 2.5 | 120 Separate Control | 110 Separate Control |
| 75D73070A | 00 - 2.5 | 110-120/220-240 | 110/190-200 |
| 75D73070D | 00 - 2.5 | 208 | — |
| 75D73070G | 00 - 2.5 | 220-240 | 190-220 |
| 75D73070L | 00 - 2.5 | 277 | 240 |
| 75D73070C | 00 - 2.5 | 220-240/440-480 | 190-220/380-440 |
| 75D73070H | 00 - 2.5 | 440-480 | 380-440 |
| 75D73070E | 00 - 2.5 | 575-600 | 550 |
| 75D73251J | 3, 3.5 | 24 Separate Control | 24 Separate Control |
| 75D73251F | 3, 3.5 | 120 Separate Control | 110 Separate Control |
| 75D73251A | 3, 3.5 | 110-120/220-240 | 110/190-200 |
| 75D73251D | 3, 3.5 | 208 | — |
| 75D73251G | 3, 3.5 | 220-240 | 190-220 |
| 75D73251L | 3, 3.5 | 277 | 240 |
| 75D73251C | 3, 3.5 | 220-240/440-480 | 190-220/380-440 |
| 75D73251H | 3, 3.5 | 440-480 | 380-440 |
| 75D73251E | 3, 3.5 | 575-600 | 550 |
| 75D70131J | 4 | 24 Separate Control | 24 Separate Control |
| 75D70131F | 4 | 120 Separate Control | 110 Separate Control |
| 75D70131A | 4 | 110-120/220-240 | 110/190-200 |
| 75D70131D | 4 | 208 | — |
| 75D70131G | 4 | 220-240 | 190-220 |
| 75D70131L | 4 | 277 | 240 |
| 75D70131C | 4 | 220-240/440-480 | 190-220/380-440 |
| 75D70131H | 4 | 440-480 | 380-440 |
| 75D70131E | 4 | 575-600 | 550 |
| 3RT1965-5AB31 | 5 | 23-26 | 23-26 |
| 3RT1965-5AF31 | 5 | 110-127 | 110-127 |
| 3RT1965-5AM31 | 5 | 200-220 | 200-220 |
| 3RT1965-5AP31 | 5 | 220-240 | 220-240 |
| 3RT1965-5AU31 | 5 | 240-277 | 240-277 |
| 3RT1965-5AV31 | 5 | 380-420 | 380-420 |
| 3RT1965-5AR31 | 5 | 440-480 | 440-480 |
| 3RT1965-5AT31 | 5 | 575-600 | 575-600 |
| 3RT1975-5AB31 | 6 | 23-26 | 23-26 |
| 3RT1975-5AF31 | 6 | 110-127 | 110-127 |
| 3RT1975-5AM31 | 6 | 200-220 | 200-220 |
| 3RT1975-5AP31 | 6 | 220-240 | 220-240 |
| 3RT1975-5AU31 | 6 | 240-277 | 240-277 |
| 3RT1975-5AV31 | 6 | 380-420 | 380-420 |
| 3RT1975-5AR31 | 6 | 440-480 | 440-480 |
| 3RT1975-5AT31 | 6 | 575-600 | 575-600 |
