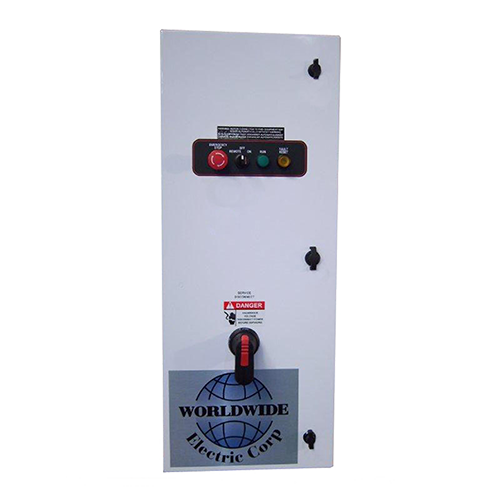

wwEPIC General Purpose Solid State
Soft Starters
An integral bypass contactor is standard on all sizes and provides maximum use of panel space while maintaining a reputation for being able to soft start almost any load. The wwEPIC soft starter is a fully integrated, compact, world-class designed soft starter that offers uncompromised power and control capabilities.
Select the following tabs to view the product data.
-
Features
• Simple operation / easy to use
• NEMA 3R enclosure
• Advanced motor protection
• Circuit breaker and door operator disconnect (fused disconnect on 20 and 25 HP)
• Overload rated 500% for 60 seconds
• Service entrance rating available
• Loss of load detection
• Three wire in, three wire out installation
• Soft stop feature eliminates water hammer
• HAND/OFF/AUTO selector switch
• Full three leg power starter for smoother starting
• Integral run-rated bypass contactor
• Run pilot light
• Emergency stop pushbutton
• Illuminated fault/reset pushbutton
• Remote keypad kit available -
Technical Specifications
Model HP @ 230V HP @ 460V Max FLA Dimensions (in.) wwEPICSSRV12-20 10 20 28 37 x 15 x 12 wwEPICSSRV12-25 — 25 39 37 x 15 x 12 wwEPICSSRV12-30 15 30 48 37 x 15 x 12 wwEPICSSRV12-40 20 40 62 37 x 15 x 12 wwEPICSSRV12-50 25 50 78 37 x 15 x 12 wwEPICSSRV12-60 30 60 92 37 x 15 x 12 wwEPICSSRV12-75 — 75 112 37 x 15 x 12 wwEPICSSRV12-100 50 100 150 37 x 15 x 12 wwEPICSSRV12-125 60 125 160 37 x 15 x 12 wwEPICSSRV12-150 75 150 210 48 x 33 x 16 wwEPICSSRV12-200 100 200 275 48 x 33 x 16 wwEPICSSRV12-250 125 250 361 48 x 33 x 16 wwEPICSSRV12-300 150 300 361 48 x 33 x 16 wwEPICSSRV12-400 200 400 550 48 x 33 x 16 wwEPICSSRV12-500 250 500 600 48 x 33 x 16 wwEPICSSRV12-600 300 600 862 92 x 36 x 30
