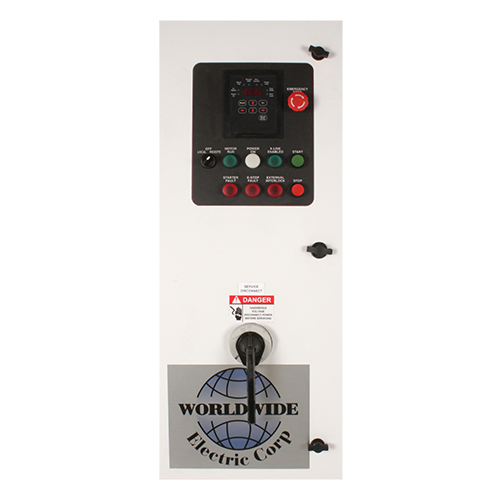

WWEPPB Heavy Duty Deep Well

Soft Starters

Select the following tabs to view the product data.

Features
Tech Specs
  • Features

    • Three wire in, three wire out installation
    • NEMA 4/12 enclosure
    • Service Entrance Rated
    • Superior motor protection via "Retentive Thermal Modeling"
    • 230/460 Volt - 3-phase - 50/60Hz
    • Advanced motor protection
    • Auto-synchronization
    • Circuit breaker with door-mounted lockable operator handle
    • Integral full-rated bypass contactor
    • "Smart Door" accepts input from Murphy Switches
    • Across the line selector switch mounted inside the enclosure
    • 120 Volt control power transformer
    • Current rated 500% for 60 seconds
    • Door-mounted keypad and pilot devices
    • Pump ramp down feature
    • External fault indicators with lights:
      - Green run light
      - Amber low crankcase oil level
      - Amber low pressure oil level
      - Amber vibration trip
      - Amber high pressure
      - Spare

  • Technical Specifications
    Model HP @ 230V HP @ 460V Max FLA Dimensions (in.)
    WWEPPBSSRV12-20 10 20 28 37 x 15 x 12
    WWEPPBSSRV12-25 — 25 39 37 x 15 x 12
    WWEPPBSSRV12-30 15 30 48 37 x 15 x 12
    WWEPPBSSRV12-40 20 40 62 37 x 15 x 12
    WWEPPBSSRV12-50 25 50 78 37 x 15 x 12
    WWEPPBSSRV12-60 30 60 92 37 x 15 x 12
    WWEPPBSSRV12-75 40 75 112 37 x 15 x 12
    WWEPPBSSRV12-100 50 100 130 48 x 33 x 16
    WWEPPBSSRV12-125 60 125 160 48 x 33 x 16
    WWEPPBSSRV12-150 75 150 210 48 x 33 x 16
    WWEPPBSSRV12-200 100 200 275 48 x 33 x 16
    WWEPPBSSRV12-300 150 300 400 48 x 33 x 16
    WWEPPBSSRV12-400 200 400 550 92 x 36 x 30
