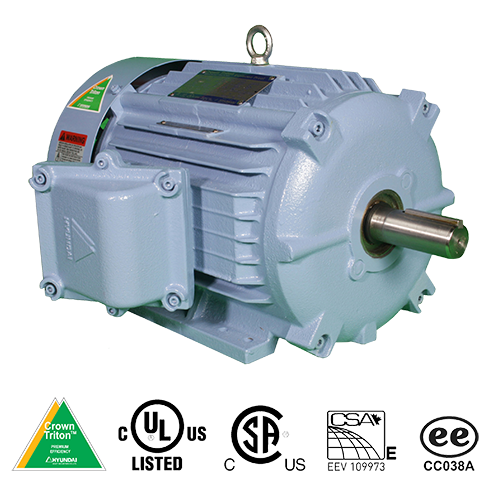

Explosion-Proof Rigid Base

Hyundai LV Motors

Available in the following varieties:
• Rigid Base (standard)
• Inverter Duty

Select the following tabs to view data for the various products.

Click the model number for a model-specific downloadable PDF (when available).

Rigid Base Features
Rigid Base Specs
Inverter Duty Features
Inverter Duty Specs
  • Rigid Base Features

    • 1-250 HP
    • 3600, 1800 and 1200 RPM
    • 208-230/460 volt (1-125 HP)
    • 460 volt (150-250 HP)
    • TEXP enclosure
    • 1.15 service factor
    • Class F insulation with Class N varnish
    • Class B temperature rise
    • Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage
    • Suitable for wye-delta start (15-250 HP)
    • Unique multiple rating system for 40°C and 55°C ambient:
      - 143T-215T: T2C at 40°C, T2B at 55°C, T4 when thermostat is connected
      - 254T-286T: T2D at 40°C, T2C at 55°C, T4 when thermostat is connected
      - 324T-444T: T3 at 40°C, T2D at 55°C, T4 when thermostat is connected
      - 445T-449T: T3 at 40°C, T2D at 55°C, T4 when thermostat is connected and 1.0 SF
    • Class I, Division 1, Groups C & D, UL Certification
    • CC # 038A
    • CSA Energy Certified
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Rigid Base Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    XHHI1-18-143T 1 1800 208-230/460 143T TEXP 1.6 85.5 64
    XHHI1-12-145T 1 1200 208-230/460 145T TEXP 1.8 82.5 66
    XHHI1.5-36-143T 1.5 3600 208-230/460 143T TEXP 2 84 64
    XHHI1.5-18-145T 1.5 1800 208-230/460 145T TEXP 2.2 86.5 66
    XHHI1.5-12-182T 1.5 1200 208-230/460 182T TEXP 2.3 87.5 112
    XHHI2-36-145T 2 3600 208-230/460 145T TEXP 2.6 85.5 66
    XHHI2-18-145T 2 1800 208-230/460 145T TEXP 3 86.5 66
    XHHI2-12-184T 2 1200 208-230/460 184T TEXP 3 88.5 121
    XHHI3-36-182T 3 3600 208-230/460 182T TEXP 3.8 86.5 112
    XHHI3-18-182T 3 1800 208-230/460 182T TEXP 3.9 89.5 112
    XHHI3-12-213T 3 1200 208-230/460 213T TEXP 4.5 89.5 160
    XHHI5-36-184T 5 3600 208-230/460 184T TEXP 6.1 88.5 121
    XHHI5-18-184T 5 1800 208-230/460 184T TEXP 6.5 89.5 121
    XHHI5-12-215T 5 1200 208-230/460 215T TEXP 7.4 89.5 180
    XHHI7.5-36-213T 7.5 3600 208-230/460 213T TEXP 9 89.5 160
    XHHI7.5-18-213T 7.5 1800 208-230/460 213T TEXP 9.5 91.7 160
    XHHI7.5-12-254T 7.5 1200 208-230/460 254T TEXP 10.3 91 310
    XHHI10-36-215T 10 3600 208-230/460 215T TEXP 12 90.2 180
    XHHI10-18-215T 10 1800 208-230/460 215T TEXP 12.8 91.7 180
    XHHI10-12-256T 10 1200 208-230/460 256T TEXP 13.8 91 350
    XHHI15-36-254T 15 3600 208-230/460 254T TEXP 16.9 91.7 310
    XHHI15-18-254T 15 1800 208-230/460 254T TEXP 18.3 92.4 310
    XHHI15-12-284T 15 1200 208-230/460 284T TEXP 19.8 91.7 440
    XHHI20-36-256T 20 3600 208-230/460 256T TEXP 23.1 91.7 350
    XHHI20-18-256T 20 1800 208-230/460 256T TEXP 24.8 93 350
    XHHI20-12-286T 20 1200 208-230/460 286T TEXP 26.7 91.7 480
    XHHI25-36-284TS 25 3600 208-230/460 284TS TEXP 28.5 91.7 440
    XHHI25-18-284T 25 1800 208-230/460 284T TEXP 30.3 93.6 440
    XHHI25-12-324T 25 1200 208-230/460 324T TEXP 31.2 93 840
    XHHI30-36-286TS 30 3600 208-230/460 286TS TEXP 33.8 91.7 480
    XHHI30-18-286T 30 1800 208-230/460 286T TEXP 36 93.6 480
    XHHI30-12-326T 30 1200 208-230/460 326T TEXP 37.1 93 820
    XHHI40-36-324TS 40 3600 208-230/460 324TS TEXP 45.5 92.4 800
    XHHI40-18-324T 40 1800 208-230/460 324T TEXP 48.8 94.1 820
    XHHI40-12-364T 40 1200 208-230/460 364T TEXP 48.8 94.1 1113
    XHHI50-36-326TS 50 3600 208-230/460 326TS TEXP 55.8 93 820
    XHHI50-18-326T 50 1800 208-230/460 326T TEXP 59.9 94.5 840
    XHHI50-12-365T 50 1200 208-230/460 365T TEXP 60.2 94.1 1173
    XHHI60-36-364TS 60 3600 208-230/460 364TS TEXP 65.6 94.1 1047
    XHHI60-18-364T 60 1800 208-230/460 364T TEXP 69.9 95 1113
    XHHI60-12-404T 60 1200 208-230/460 404T TEXP 71.2 94.5 1532
    XHHI75-36-365TS 75 3600 208-230/460 365TS TEXP 79.8 94.5 1087
    XHHI75-18-365T 75 1800 208-230/460 365T TEXP 85.1 95.4 1153
    XHHI75-12-405T 75 1200 208-230/460 405T TEXP 87 94.5 1830
    XHHI100-36-405TS 100 3600 208-230/460 405TS TEXP 110.1 94.5 1852
    XHHI100-18-405TBB 100 1800 208-230/460 405T TEXP 114.1 95.4 1830
    XHHI100-12-444TBB 100 1200 208-230/460 444T TEXP 116.6 95 2116
    XHHI125-36-444TS 125 3600 208-230/460 444TS TEXP 139.5 95 2006
    XHHI125-18-444TBB 125 1800 208-230/460 444T TEXP 142 95.4 2116
    XHHI125-12-445TBB 125 1200 208-230/460 445T TEXP 147.7 95 2293
    XHHI150-36-445TS 150 3600 460 445TS TEXP 161.5 95 2249
    XHHI150-18-445TBB 150 1800 460 445T TEXP 163.8 95.8 2293
    XHHI150-12-447TBB 150 1200 460 447T TEXP 169.5 95.8 2756
    XHHI200-36-447TS 200 3600 460 447TS TEXP 219.3 95.4 2690
    XHHI200-18-447TBB 200 1800 460 447T TEXP 222.4 96.2 2756
    XHHI200-12-449TBB 200 1200 460 449T TEXP 231.2 95.8 3086
    XHHI250-36-449TS 250 3600 460 449TS TEXP 276.6 95.8 3020
    XHHI250-18-449TBB 250 1800 460 449T TEXP 281.7 96.2 3086
  • Inverter Duty Features

    • 1-250 HP
    • 3600, 1800 and 1200 RPM
    • 208-230/460 volt (1-125 HP)
    • 460 volt (150-250 HP)
    • TEXP enclosure
    • 1.15 service factor
    • Class F insulation with Class N varnish
    • Class B temperature rise
    • Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage
    • Suitable for wye-delta start (15-250 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Unique multiple rating system for 40°C and 55°C ambient:
      - 143T-215T: T2C at 40°C, T2B at 55°C, T4 when thermostat is connected
      - 254T-286T: T2D at 40°C, T2C at 55°C, T4 when thermostat is connected
      - 324T-444T: T3 at 40°C, T2D at 55°C, T4 when thermostat is connected
      - 445T-449T: T3 at 40°C, T2D at 55°C, T4 when thermostat is connected and 1.0 SF
    • Class I, Division 1, Groups C & D, UL Certification
    • CC # 038A
    • CSA Energy Certified
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Inverter Duty Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    IXHHI1-18-143T 1 1800 208-230/460 143T TEXP 1.6 85.5 64
    IXHHI1-12-145T 1 1200 208-230/460 145T TEXP 1.8 82.5 66
    IXHHI1.5-36-143T 1.5 3600 208-230/460 143T TEXP 2 84 64
    IXHHI1.5-18-145T 1.5 1800 208-230/460 145T TEXP 2.2 86.5 66
    IXHHI1.5-12-182T 1.5 1200 208-230/460 182T TEXP 2.3 87.5 112
    IXHHI2-36-145T 2 3600 208-230/460 145T TEXP 2.6 85.5 66
    IXHHI2-18-145T 2 1800 208-230/460 145T TEXP 3 86.5 66
    IXHHI2-12-184T 2 1200 208-230/460 184T TEXP 3 88.5 121
    IXHHI3-36-182T 3 3600 208-230/460 182T TEXP 3.8 86.5 112
    IXHHI3-18-182T 3 1800 208-230/460 182T TEXP 3.9 89.5 112
    IXHHI3-12-213T 3 1200 208-230/460 213T TEXP 4.5 89.5 160
    IXHHI5-36-184T 5 3600 208-230/460 184T TEXP 6.1 88.5 121
    IXHHI5-18-184T 5 1800 208-230/460 184T TEXP 6.5 89.5 121
    IXHHI5-12-215T 5 1200 208-230/460 215T TEXP 7.4 89.5 180
    IXHHI7.5-36-213T 7.5 3600 208-230/460 213T TEXP 9 89.5 160
    IXHHI7.5-18-213T 7.5 1800 208-230/460 213T TEXP 9.5 91.7 160
    IXHHI7.5-12-254T 7.5 1200 208-230/460 254T TEXP 10.3 91 310
    IXHHI10-36-215T 10 3600 208-230/460 215T TEXP 12 90.2 180
    IXHHI10-18-215T 10 1800 208-230/460 215T TEXP 12.8 91.7 180
    IXHHI10-12-256T 10 1200 208-230/460 256T TEXP 13.8 91 350
    IXHHI15-36-254T 15 3600 208-230/460 254T TEXP 16.9 91.7 310
    IXHHI15-18-254T 15 1800 208-230/460 254T TEXP 18.3 92.4 310
    IXHHI15-12-284T 15 1200 208-230/460 284T TEXP 19.8 91.7 440
    IXHHI20-36-256T 20 3600 208-230/460 256T TEXP 23.1 91.7 350
    IXHHI20-18-256T 20 1800 208-230/460 256T TEXP 24.8 93 350
    IXHHI20-12-286T 20 1200 208-230/460 286T TEXP 26.7 91.7 480
    IXHHI25-36-284TS 25 3600 208-230/460 284TS TEXP 28.5 91.7 440
    IXHHI25-18-284T 25 1800 208-230/460 284T TEXP 30.3 93.6 440
    IXHHI25-12-324T 25 1200 208-230/460 324T TEXP 31.2 93 840
    IXHHI30-36-286TS 30 3600 208-230/460 286TS TEXP 33.8 91.7 480
    IXHHI30-18-286T 30 1800 208-230/460 286T TEXP 36 93.6 480
    IXHHI30-12-326T 30 1200 208-230/460 326T TEXP 37.1 93 820
    IXHHI40-36-324TS 40 3600 208-230/460 324TS TEXP 45.5 92.4 800
    IXHHI40-18-324T 40 1800 208-230/460 324T TEXP 48.8 94.1 820
    IXHHI40-12-364T 40 1200 208-230/460 364T TEXP 48.8 94.1 1113
    IXHHI50-36-326TS 50 3600 208-230/460 326TS TEXP 55.8 93 820
    IXHHI50-18-326T 50 1800 208-230/460 326T TEXP 59.9 94.5 840
    IXHHI50-12-365T 50 1200 208-230/460 365T TEXP 60.2 94.1 1173
    IXHHI60-36-364TS 60 3600 208-230/460 364TS TEXP 65.6 94.1 1047
    IXHHI60-18-364T 60 1800 208-230/460 364T TEXP 69.9 95 1113
    IXHHI60-12-404T 60 1200 208-230/460 404T TEXP 71.2 94.5 1532
    IXHHI75-36-365TS 75 3600 208-230/460 365TS TEXP 79.8 94.5 1087
    IXHHI75-18-365T 75 1800 208-230/460 365T TEXP 85.1 95.4 1153
    IXHHI75-12-405T 75 1200 208-230/460 405T TEXP 87 94.5 1830
    IXHHI100-36-405TS 100 3600 208-230/460 405TS TEXP 110.1 94.5 1852
    IXHHI100-18-405TBB 100 1800 208-230/460 405T TEXP 114.1 95.4 1830
    IXHHI100-12-444TBB 100 1200 208-230/460 444T TEXP 116.6 95 2116
    IXHHI125-36-444TS 125 3600 208-230/460 444TS TEXP 139.5 95 2006
    IXHHI125-18-444TBB 125 1800 208-230/460 444T TEXP 142 95.4 2116
    IXHHI125-12-445TBB 125 1200 208-230/460 445T TEXP 147.7 95 2293
    IXHHI150-36-445TS 150 3600 460 445TS TEXP 161.5 95 2249
    IXHHI150-18-445TBB 150 1800 460 445T TEXP 163.8 95.8 2293
    IXHHI150-12-447TBB 150 1200 460 447T TEXP 169.5 95.8 2756
    IXHHI200-36-447TS 200 3600 460 447TS TEXP 219.3 95.4 2690
    IXHHI200-18-447TBB 200 1800 460 447T TEXP 222.4 96.2 2756
    IXHHI200-12-449TBB 200 1200 460 449T TEXP 231.2 95.8 3086
    IXHHI250-18-449TBB 250 1800 460 449T TEXP 281.7 96.2 3086
