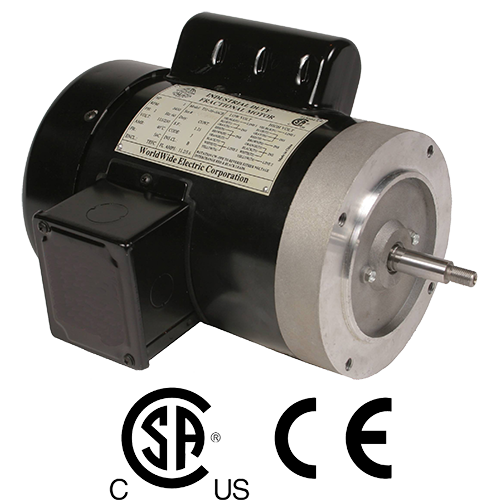

Jet Pump Single-Phase
Fractional HP Motors
Select the following tabs to view the product data.
Click the model number for a model-specific downloadable PDF (when available).
-
Features
• 1/3-2 HP
• 3600 RPM
• 115/208-230 volt
• TEFC enclosure
• 1.15 service factor
• Class F insulation
• C-face - removable base
• Threaded shaft
• Capacitor start / induction run (1/3-1 HP)
• Capacitor start / capacitor run (1.5-2 HP) for reduced amperage and high torque
• Shaft slinger to keep moisture and contaminants from the drive-end bearing
• Automatic overload -
Technical Specifications
Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs) TJ13-36-56JB 1/3 3600 115/208-230 56J TEFC 3.1 58 23 TJ12-36-56JB 1/2 3600 115/208-230 56J TEFC 4.4 61 25 TJ34-36-56JB 3/4 3600 115/208-230 56J TEFC 5.3 64 27 TJ1-36-56JB 1 3600 115/208-230 56J TEFC 5.6 69 31 TJ1.5-36-56JB 1.5 3600 115/208-230 56J TEFC 7.1 72 37 TJ2-36-56JB 2 3600 115/208-230 56J TEFC 9.1 75 40
