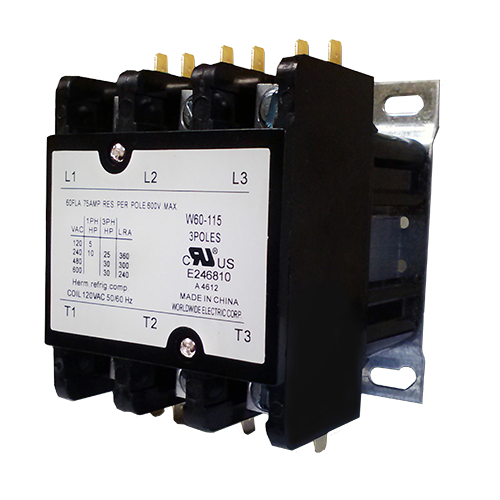

Definite Purpose AC Contactors

Contactors & Overload Relays

Select the following tabs to view the product data.

Click the model number for a model-specific downloadable PDF (when available).

  • Features

    • Cushioned, isolated coil
    • Reinforced thermalset polyester housing
    • Large terminals for easy wiring
    • Power termination options (screw terminals or lug terminals with quick connects)

    Applications
    • Air conditioning and heating
    • Ventilating and refrigeration
    • Food and beverage industries
    • Pump and compressor
    • Hoists and cranes
    • Pool and spa
    • Conveyors
    • Welding

  • Technical Specifications
    Model FL Amps (A) Poles Coil Voltage
    WH20-2-24 20 2 24
    WH20-2-115 20 2 110-120
    WH20-2-200/230 20 2 208-240
    WH25-2-24 25 2 24
    WH25-2-115 25 2 110-120
    WH25-2-200/230 25 2 208-240
    WH30-2-24 30 2 24
    WH30-2-115 30 2 110-120
    WH30-2-200/230 30 3 208-240
    WH30-24 30 3 24
    WH30-115 30 3 110-120
    WH30-200/230 30 3 208-240
    WH30-480 30 3 480
    WH30-4-115 30 4 110-120
    WH40-2-24 40 2 24
    WH40-2-115 40 2 110-120
    WH40-2-200/230 40 2 208-240
    WH40-24 40 3 24
    WH40-115 40 3 110-120
    WH40-200/230 40 3 208-240
    WH40-480 40 3 480
    WH40-4-115 40 4 110-120
    WH40-4-230 40 4 208-240
    WH50-24 50 3 24
    WH50-115 50 3 110-120
    WH50-200/230 50 3 208-240
    WH50-480 50 3 480
    WH60-24 60 3 24
    WH60-115 60 3 110-120
    WH60-200/230 60 3 208-240
    WH60-480 60 3 480
    WH75-24 75 3 24
    WH75-115 75 3 110-120
    WH75-200/230 75 3 208-240
    WH75-480 75 3 480
    WH90-24 90 3 24
    WH90-115 90 3 110-120
    WH90-200/230 90 3 208-240
    WH90-480 90 3 480
    WH120-115 120 3 110-120
  • Field Modification Kits / Side Mount Auxiliary Interlocks
    Model Contactor Amp Rating Description Terminal Type
    WHACQ-NO-30/40 30-40 1 NO Quick
    WHACQ-NC-30/40 30-40 1 NC Quick
    WHACQ-NONC-30/40 30-40 1 NO & 1 NC Quick
    WHACS-NO-30/40 30-40 1 NO Screw
    WHACS-NC-30/40 30-40 1 NC Screw
    WHACS-NONC-30/40 30-40 1 NO & 1 NC Screw
    WHACQ-SPDT-30/40 30-40 1 SPDT Quick
    WHACQ-2SPDT-30/40 30-40 2 SPDT Quick
    WHACQ-SPDT-50/60 50-60 1 SPDT Quick
    WHACQ-SPDT-75/90 75-90 1 SPDT Quick
