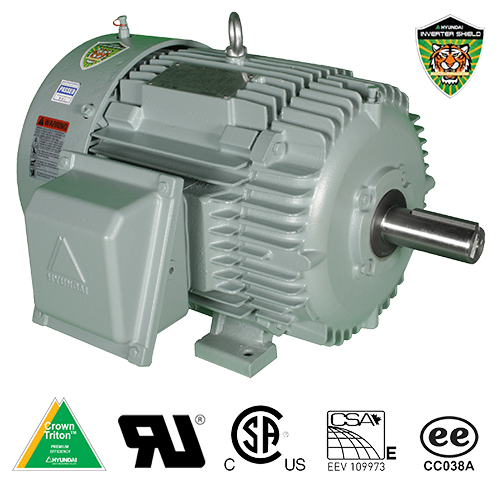

IEEE-841 Rigid Base

Hyundai LV Motors

Available in the following varieties:
• Rigid Base (standard)
• White Epoxy Painted

Select the following tabs to view data for the various products.

Click the model number for a model-specific downloadable PDF (when available).

Rigid Base Features
Rigid Base Tech Specs
White Epoxy Features
White Epoxy Specs
  • Rigid Base Features

    • 1-250 HP
    • 3600, 1800 and 1200 RPM
    • Single voltage, 460 volt
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • Rigid base
    • Full compliance with IEEE-841, version 2009
    • Meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • Parker Hannifin ProTech IP66 labyrinth seals on both drive-end and opposite drive-end bearings
    • CSA Certified for Class I, Division 2, Groups A, B, C, D
    • Inverter duty, 10:1 CT / 1000:1 VT
    • Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
    • Class B temperature rise
    • IP55 degree of protection
    • NEMA design B torque
    • IEEE-841 motor test report supplied with each motor
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Rigid Base Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    IEEE1-18-143T 1 1800 460 143T TEFC 1.6 85.5 53
    IEEE1-12-145T 1 1200 460 145T TEFC 1.8 82.5 55
    IEEE1.5-36-143T 1.5 3600 460 143T TEFC 2 84 53
    IEEE1.5-18-145T 1.5 1800 460 145T TEFC 2.2 86.5 55
    IEEE1.5-12-182T 1.5 1200 460 182T TEFC 2.3 87.5 90
    IEEE2-36-145T 2 3600 460 145T TEFC 2.6 85.5 55
    IEEE2-18-145T 2 1800 460 145T TEFC 3 86.5 55
    IEEE2-12-184T 2 1200 460 184T TEFC 3 88.5 105
    IEEE3-36-182T 3 3600 460 182T TEFC 3.8 86.5 90
    IEEE3-18-182T 3 1800 460 182T TEFC 3.9 89.5 90
    IEEE3-12-213T 3 1200 460 213T TEFC 4.5 89.5 150
    IEEE5-36-184T 5 3600 460 184T TEFC 6.1 88.5 105
    IEEE5-18-184T 5 1800 460 184T TEFC 6.5 89.5 105
    IEEE5-12-215T 5 1200 460 215T TEFC 7.4 89.5 165
    IEEE7.5-36-213T 7.5 3600 460 213T TEFC 9 89.5 150
    IEEE7.5-18-213T 7.5 1800 460 213T TEFC 9.5 91.7 150
    IEEE7.5-12-254T 7.5 1200 460 254T TEFC 10.3 91 260
    IEEE10-36-215T 10 3600 460 215T TEFC 12 90.2 165
    IEEE10-18-215T 10 1800 460 215T TEFC 12.8 91.7 165
    IEEE10-12-256T 10 1200 460 256T TEFC 13.8 91 300
    IEEE15-36-254T 15 3600 460 254T TEFC 16.9 91.7 260
    IEEE15-18-254T 15 1800 460 254T TEFC 18.3 92.4 260
    IEEE15-12-284T 15 1200 460 284T TEFC 19.8 91.7 360
    IEEE20-36-256T 20 3600 460 256T TEFC 23.1 91.7 300
    IEEE20-18-256T 20 1800 460 256T TEFC 24.8 93 300
    IEEE20-12-286T 20 1200 460 286T TEFC 26.7 91.7 390
    IEEE25-36-284TS 25 3600 460 284TS TEFC 28.5 91.7 380
    IEEE25-18-284T 25 1800 460 284T TEFC 30.3 93.6 380
    IEEE25-12-324T 25 1200 460 324T TEFC 31.2 93 550
    IEEE30-36-286TS 30 3600 460 286TS TEFC 33.8 91.7 410
    IEEE30-18-286T 30 1800 460 286T TEFC 36 93.6 410
    IEEE30-12-326T 30 1200 460 326T TEFC 37.1 93 560
    IEEE40-36-324TS 40 3600 460 324TS TEFC 45.5 92.4 550
    IEEE40-18-324T 40 1800 460 324T TEFC 48.8 94.1 550
    IEEE40-12-364T 40 1200 460 364T TEFC 48.8 94.1 780
    IEEE50-36-326TS 50 3600 460 326TS TEFC 55.8 93 560
    IEEE50-18-326T 50 1800 460 326T TEFC 59.9 94.5 560
    IEEE50-12-365T 50 1200 460 365T TEFC 60.2 94.1 840
    IEEE60-36-364TS 60 3600 460 364TS TEFC 65.6 94.1 780
    IEEE60-18-364T 60 1800 460 364T TEFC 69.9 95 780
    IEEE60-12-404T 60 1200 460 404T TEFC 71.2 94.5 1120
    IEEE75-36-365TS 75 3600 460 365TS TEFC 79.8 94.5 820
    IEEE75-18-365T 75 1800 460 365T TEFC 85.1 95.4 820
    IEEE75-12-405T 75 1200 460 405T TEFC 87 94.5 1220
    IEEE100-36-405TS 100 3600 460 405TS TEFC 110.1 94.5 1110
    IEEE100-18-405T 100 1800 460 405T TEFC 114.1 95.4 1110
    IEEE100-18-405TBB 100 1800 460 405T TEFC 114.1 95.4 1110
    IEEE100-12-444T 100 1200 460 444T TEFC 116.6 95 1530
    IEEE125-36-444TS 125 3600 460 444TS TEFC 139.5 95 1610
    IEEE125-18-444T 125 1800 460 444T TEFC 142 95.4 1530
    IEEE125-18-444TBB 125 1800 460 444T TEFC 142 95.4 1530
    IEEE125-12-445T 125 1200 460 445T TEFC 147.7 95 1700
    IEEE150-36-445TS 150 3600 460 445TS TEFC 161.5 95 1770
    IEEE150-18-445T 150 1800 460 445T TEFC 163.8 95.8 1640
    IEEE150-18-445TBB 150 1800 460 445T TEFC 163.8 95.8 1640
    IEEE150-12-447T 150 1200 460 447T TEFC 169.5 95.8 1970
    IEEE200-36-447TS 200 3600 460 447TS TEFC 219.3 95.4 1900
    IEEE200-18-447T 200 1800 460 447T TEFC 222.4 96.2 1860
    IEEE200-18-447TBB 200 1800 460 447T TEFC 222.4 96.2 1860
    IEEE200-12-449T 200 1200 460 449T TEFC 231.2 95.8 2430
    IEEE250-36-449TS 250 3600 460 449TS TEFC 276.6 95.8 2430
    IEEE250-18-449T 250 1800 460 449T TEFC 281.7 96.2 2430
  • White Epoxy Painted Features

    • 1-250 HP
    • 3600, 1800 and 1200 RPM
    • Single voltage, 460 volt
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • Rigid base
    • Full compliance with IEEE-841, version 2009
    • Meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • White epoxy paint
    • Suitable for use in USDA inspected facilities
    • Acceptable for use in high performance architectural applications
    • 5-year warranty
    • Parker Hannifin ProTech IP66 labyrinth seals on both drive-end and opposite drive-end bearings
    • CSA Certified for Class I, Division 2, Groups A, B, C, D
    • Inverter duty, 10:1 CT / 1000:1 VT
    • Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
    • Class B temperature rise
    • IP55 degree of protection
    • NEMA design B torque
    • IEEE-841 motor test report supplied with each motor
    • Please allow additional 5-7 business days delivery
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • White Epoxy Painted Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    IEEE1-18-143T-EPOXY 1 1800 460 143T TEFC 1.6 85.5 53
    IEEE1-12-145T-EPOXY 1 1200 460 145T TEFC 1.8 82.5 55
    IEEE1.5-36-143T-EPOXY 1.5 3600 460 143T TEFC 2 84 53
    IEEE1.5-18-145T-EPOXY 1.5 1800 460 145T TEFC 2.2 86.5 55
    IEEE1.5-12-182T-EPOXY 1.5 1200 460 182T TEFC 2.3 87.5 90
    IEEE2-36-145T-EPOXY 2 3600 460 145T TEFC 2.6 85.5 55
    IEEE2-18-145T-EPOXY 2 1800 460 145T TEFC 3 86.5 55
    IEEE2-12-184T-EPOXY 2 1200 460 184T TEFC 3 88.5 105
    IEEE3-36-182T-EPOXY 3 3600 460 182T TEFC 3.8 86.5 90
    IEEE3-18-182T-EPOXY 3 1800 460 182T TEFC 3.9 89.5 90
    IEEE3-12-213T-EPOXY 3 1200 460 213T TEFC 4.5 89.5 150
    IEEE5-36-184T-EPOXY 5 3600 460 184T TEFC 6.1 88.5 105
    IEEE5-18-184T-EPOXY 5 1800 460 184T TEFC 6.5 89.5 105
    IEEE5-12-215T-EPOXY 5 1200 460 215T TEFC 7.4 89.5 165
    IEEE7.5-36-213T-EPOXY 7.5 3600 460 213T TEFC 9 89.5 150
    IEEE7.5-18-213T-EPOXY 7.5 1800 460 213T TEFC 9.5 91.7 150
    IEEE7.5-12-254T-EPOXY 7.5 1200 460 254T TEFC 10.3 91 260
    IEEE10-36-215T-EPOXY 10 3600 460 215T TEFC 12 90.2 165
    IEEE10-18-215T-EPOXY 10 1800 460 215T TEFC 12.8 91.7 165
    IEEE10-12-256T-EPOXY 10 1200 460 256T TEFC 13.8 91 300
    IEEE15-36-254T-EPOXY 15 3600 460 254T TEFC 16.9 91.7 260
    IEEE15-18-254T-EPOXY 15 1800 460 254T TEFC 18.3 92.4 260
    IEEE15-12-284T-EPOXY 15 1200 460 284T TEFC 19.8 91.7 360
    IEEE20-36-256T-EPOXY 20 3600 460 256T TEFC 23.1 91.7 300
    IEEE20-18-256T-EPOXY 20 1800 460 256T TEFC 24.8 93 300
    IEEE20-12-286T-EPOXY 20 1200 460 286T TEFC 26.7 91.7 390
    IEEE25-36-284TS-EPOXY 25 3600 460 284TS TEFC 28.5 91.7 380
    IEEE25-18-284T-EPOXY 25 1800 460 284T TEFC 30.3 93.6 380
    IEEE25-12-324T-EPOXY 25 1200 460 324T TEFC 31.2 93 550
    IEEE30-36-286TS-EPOXY 30 3600 460 286TS TEFC 33.8 91.7 410
    IEEE30-18-286T-EPOXY 30 1800 460 286T TEFC 36 93.6 410
    IEEE30-12-326T-EPOXY 30 1200 460 326T TEFC 37.1 93 560
    IEEE40-36-324TS-EPOXY 40 3600 460 324TS TEFC 45.5 92.4 550
    IEEE40-18-324T-EPOXY 40 1800 460 324T TEFC 48.8 94.1 550
    IEEE40-12-364T-EPOXY 40 1200 460 364T TEFC 48.8 94.1 780
    IEEE50-36-326TS-EPOXY 50 3600 460 326TS TEFC 55.8 93 560
    IEEE50-18-326T-EPOXY 50 1800 460 326T TEFC 59.9 94.5 560
    IEEE50-12-365T-EPOXY 50 1200 460 365T TEFC 60.2 94.1 840
    IEEE60-36-364TS-EPOXY 60 3600 460 364TS TEFC 65.6 94.1 780
    IEEE60-18-364T-EPOXY 60 1800 460 364T TEFC 69.9 95 780
    IEEE60-12-404T-EPOXY 60 1200 460 404T TEFC 71.2 94.5 1120
    IEEE75-36-365TS-EPOXY 75 3600 460 365TS TEFC 79.8 94.5 820
    IEEE75-18-365T-EPOXY 75 1800 460 365T TEFC 85.1 95.4 820
    IEEE75-12-405T-EPOXY 75 1200 460 405T TEFC 87 94.5 1220
    IEEE100-36-405TS-EPOXY 100 3600 460 405TS TEFC 110.1 94.5 1110
    IEEE100-18-405T-EPOXY 100 1800 460 405T TEFC 114.1 95.4 1110
    IEEE100-18-405TBB-EPOXY 100 1800 460 405T TEFC 114.1 95.4 1110
    IEEE100-12-444T-EPOXY 100 1200 460 444T TEFC 116.6 95 1530
    IEEE125-36-444TS-EPOXY 125 3600 460 444TS TEFC 139.5 95 1610
    IEEE125-18-444T-EPOXY 125 1800 460 444T TEFC 142 95.4 1530
    IEEE125-18-444TBB-EPOXY 125 1800 460 444T TEFC 142 95.4 1530
    IEEE125-12-445T-EPOXY 125 1200 460 445T TEFC 147.7 95 1700
    IEEE150-36-445TS-EPOXY 150 3600 460 445TS TEFC 161.5 95 1770
    IEEE150-18-445T-EPOXY 150 1800 460 445T TEFC 163.8 95.8 1640
    IEEE150-18-445TBB-EPOXY 150 1800 460 445T TEFC 163.8 95.8 1640
    IEEE150-12-447T-EPOXY 150 1200 460 447T TEFC 169.5 95.8 1970
    IEEE200-36-447TS-EPOXY 200 3600 460 447TS TEFC 219.3 95.4 1900
    IEEE200-18-447T-EPOXY 200 1800 460 447T TEFC 222.4 96.2 1860
    IEEE200-18-447TBB-EPOXY 200 1800 460 447T TEFC 222.4 96.2 1860
    IEEE200-12-449T-EPOXY 200 1200 460 449T TEFC 231.2 95.8 2430
    IEEE250-36-449TS-EPOXY 250 3600 460 449TS TEFC 276.6 95.8 2430
    IEEE250-18-449T-EPOXY 250 1800 460 449T TEFC 281.7 96.2 2430
