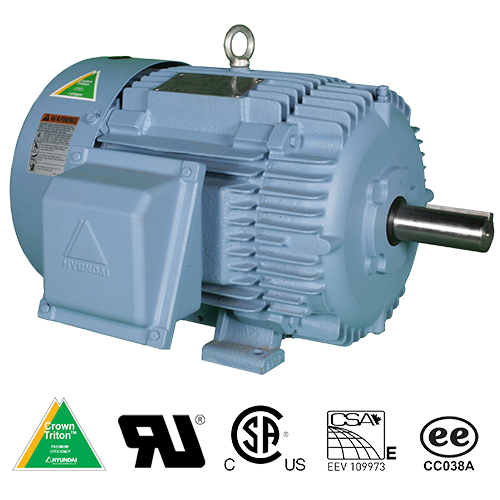

Premium Efficiency Rigid Base

Hyundai LV Motors

Available in the following varieties:
• Rigid Base (standard)
• Factory Short Shaft
• Factory F2 Mount
• 575 Volt

Select the following tabs to view data for the various products.

Click the model number for a model-specific downloadable PDF (when available).

Rigid Base Features
Rigid Base Specs
Short Shaft Features
Short Shaft Specs
F2 Mount Features
F2 Mount Specs
575V Features
575V Specs
  • Rigid Base Features

    • 1-600 HP
    • 3600, 1800 and 1200 RPM
    • 208-230/460 volt (1-125 HP)
    • 460 volt (150-250 HP)
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (1-125 HP)
    • Suitable for wye-delta start (15-250 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324T-449T)
    • F2 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor
      - Please consult your mdi rep for 200 HP and above

  • Rigid Base Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI1-18-143T 1 1800 203-230/460 143T TEFC 1.6 85.5 53
    HHI1-12-145T 1 1200 203-230/460 145T TEFC 1.8 82.5 55
    HHI1.5-36-143T 1.5 3600 203-230/460 143T TEFC 2 84 53
    HHI1.5-18-145T 1.5 1800 203-230/460 145T TEFC 2.2 86.5 55
    HHI1.5-12-182T 1.5 1200 203-230/460 182T TEFC 2.3 87.5 90
    HHI2-36-145T 2 3600 203-230/460 145T TEFC 2.6 85.5 55
    HHI2-18-145T 2 1800 203-230/460 145T TEFC 3 86.5 55
    HHI2-12-184T 2 1200 203-230/460 184T TEFC 3 88.5 105
    HHI3-36-182T 3 3600 203-230/460 182T TEFC 3.8 86.5 90
    HHI3-18-182T 3 1800 203-230/460 182T TEFC 3.9 89.5 90
    HHI3-12-213T 3 1200 203-230/460 213T TEFC 4.5 89.5 150
    HHI5-36-184T 5 3600 203-230/460 184T TEFC 6.1 88.5 105
    HHI5-18-184T 5 1800 203-230/460 184T TEFC 6.5 89.5 105
    HHI5-12-215T 5 1200 203-230/460 215T TEFC 7.4 89.5 165
    HHI7.5-36-213T 7.5 3600 203-230/460 213T TEFC 9 89.5 150
    HHI7.5-18-213T 7.5 1800 203-230/460 213T TEFC 9.5 91.7 150
    HHI7.5-12-254T 7.5 1200 203-230/460 254T TEFC 10.3 91 260
    HHI10-36-215T 10 3600 203-230/460 215T TEFC 12 90.2 165
    HHI10-18-215T 10 1800 203-230/460 215T TEFC 12.8 91.7 165
    HHI10-12-256T 10 1200 203-230/460 256T TEFC 13.8 91 300
    HHI15-36-254T 15 3600 203-230/460 254T TEFC 16.9 91.7 260
    HHI15-18-254T 15 1800 203-230/460 254T TEFC 18.3 92.4 260
    HHI15-12-284T 15 1200 203-230/460 284T TEFC 19.8 91.7 380
    HHI20-36-256T 20 3600 203-230/460 256T TEFC 23.1 91.7 300
    HHI20-18-256T 20 1800 203-230/460 256T TEFC 24.8 93 300
    HHI20-12-286T 20 1200 203-230/460 286T TEFC 26.7 91.7 410
    HHI25-36-284T 25 3600 203-230/460 284T TEFC 28.5 91.7 380
    HHI25-36-284TS 25 3600 203-230/460 284TS TEFC 28.5 91.7 380
    HHI25-18-284T 25 1800 203-230/460 284T TEFC 30.3 93.6 380
    HHI25-12-324T 25 1200 203-230/460 324T TEFC 31.2 93 550
    HHI30-36-286T 30 3600 203-230/460 286T TEFC 33.8 91.7 410
    HHI30-36-286TS 30 3600 203-230/460 286TS TEFC 33.8 91.7 410
    HHI30-18-286T 30 1800 203-230/460 286T TEFC 36 93.6 410
    HHI30-12-326T 30 1200 203-230/460 326T TEFC 37.1 93 560
    HHI40-36-324T 40 3600 203-230/460 324T TEFC 45.5 92.4 530
    HHI40-36-324TS 40 3600 203-230/460 324TS TEFC 45.5 92.4 530
    HHI40-18-324T 40 1800 203-230/460 324T TEFC 48.8 94.1 550
    HHI40-12-364T 40 1200 203-230/460 364T TEFC 48.8 94.1 780
    HHI50-36-326T 50 3600 203-230/460 326T TEFC 55.8 93 540
    HHI50-36-326TS 50 3600 203-230/460 326TS TEFC 55.8 93 540
    HHI50-18-326T 50 1800 203-230/460 326T TEFC 59.9 94.5 560
    HHI50-12-365T 50 1200 203-230/460 365T TEFC 60.2 94.1 840
    HHI60-36-364T 60 3600 203-230/460 364T TEFC 65.6 94.1 780
    HHI60-36-364TS 60 3600 203-230/460 364TS TEFC 65.6 94.1 780
    HHI60-18-364T 60 1800 203-230/460 364T TEFC 69.9 95 780
    HHI60-12-404T 60 1200 203-230/460 404T TEFC 71.2 94.5 1120
    HHI75-36-365T 75 3600 203-230/460 365T TEFC 79.8 94.5 820
    HHI75-36-365TS 75 3600 203-230/460 365TS TEFC 79.8 94.5 820
    HHI75-18-365T 75 1800 203-230/460 365T TEFC 79.8 94.5 820
    HHI75-12-405T 75 1200 203-230/460 405T TEFC 87 94.5 1220
    HHI100-36-405TS 100 3600 203-230/460 405TS TEFC 110.1 94.5 1110
    HHI100-18-405T 100 1800 203-230/460 405T TEFC 114.1 95.4 1110
    HHI100-18-405TBB 100 1800 203-230/460 405T TEFC 114.1 95.4 1110
    HHI100-12-444T 100 1200 203-230/460 444T TEFC 116.6 95 1530
    HHI125-36-444TS 125 3600 203-230/460 444TS TEFC 139.5 95 1610
    HHI125-18-444T 125 1800 203-230/460 444T TEFC 142 95.4 1530
    HHI125-18-444TBB 125 1800 203-230/460 444T TEFC 142 95.4 1530
    HHI125-12-445T 125 1200 203-230/460 445T TEFC 147.7 95 1700
    HHI150-36-445TS 150 3600 460 445TS TEFC 161.5 95 1770
    HHI150-18-445T 150 1800 460 445T TEFC 163.8 95.8 1700
    HHI150-18-445TBB 150 1800 460 445T TEFC 163.8 95.8 1700
    HHI150-12-447T 150 1200 460 447T TEFC 169.5 95.8 1860
    HHI200-36-447TS 200 3600 460 447TS TEFC 219.3 95.4 1900
    HHI200-18-447T 200 1800 460 447T TEFC 222.4 96.2 1860
    HHI200-18-447TBB 200 1800 460 447T TEFC 222.4 96.2 1860
    HHI200-12-449T 200 1200 460 449T TEFC 231.2 95.8 2430
    HHI250-36-449TS 250 3600 460 449TS TEFC 276.6 95.8 2430
    HHI250-18-449T 250 1800 460 449T TEFC 281.7 96.2 2430
    HHI250-18-449TBB 250 1800 460 449T TEFC 281.7 96.2 2430
    HSD250-12-L449T 250 1200 460 L449T TEFC 298.8 95.8 2890
    HSD300-36-L449TS 300 3600 460 L449TS TEFC 328.9 95.8 2890
    HSD300-18-L449T 300 1800 460 L449T TEFC 336.4 96.2 2890
    HSD300-18-L449TBB 300 1800 460 L449T TEFC 336.4 96.2 2890
    HSD300-12-L449T 300 1200 460 L449T TEFC 353.9 95.8 3090
    HSD350-36-L449TS 350 3600 460 L449TS TEFC 380.1 95.8 3090
    HSD350-18-L449T 350 1800 460 L449T TEFC 388.7 96.2 3090
    HSD350-18-L449TBB 350 1800 460 L449T TEFC 388.7 96.2 3090
    HSD350-12-5008 350 1200 460 5008 TEFC 408.9 95.8 3880
    HSD400-36-L449TS 400 3600 460 L449TS TEFC 438.5 95.8 3770
    HSD400-18-L449T 400 1800 460 L449T TEFC 448.5 96.2 3570
    HSD400-18-L449TBB 400 1800 460 L449T TEFC 448.5 96.2 3570
    HSD400-12-5010 400 1200 460 5010 TEFC 471.8 95.8 4760
    HSD450-36-5009S 450 3600 460 5009S TEFC 489.7 95.8 3860
    HSD450-18-5009 450 1800 460 5009 TEFC 495.2 96.2 3970
    HSD450-18-5009BB 450 1800 460 5009 TEFC 495.2 96.2 3970
    HSD450-12-5011 450 1200 460 5011 TEFC 526.9 95.8 4850
    HSD500-36-5010S 500 3600 460 5010S TEFC 548.2 95.8 4740
    HSD500-18-5010 500 1800 460 5010 TEFC 552 96.2 4760
    HSD500-18-5010BB 500 1800 460 5010 TEFC 552 96.2 4760
    HSD600-18-5011 600 1800 460 5011 TEFC 662.4 96.2 4940
  • Factory Short Shaft Features

    • 25-200 HP
    • 1800 and 1200 RPM
    • 208-230/460 volt (25-125 HP)
    • 460 volt (150-200 HP)
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • Rigid base
    • Factory short shaft
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (25-125 HP)
    • Suitable for wye-delta start (25-200 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324TS-449TS)
    • F2 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Factory Short Shaft Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI25-18-284TS 25 1800 203-230/460 284TS TEFC 30.3 93.6 380
    HHI30-18-286TS 30 1800 203-230/460 286TS TEFC 36 93.6 410
    HHI40-18-324TS 40 1800 203-230/460 324TS TEFC 48.8 94.1 550
    HHI50-18-326TS 50 1800 203-230/460 326TS TEFC 59.9 94.5 560
    HHI60-18-364TS 60 1800 203-230/460 364TS TEFC 69.9 95 780
    HHI75-18-365TS 75 1800 203-230/460 365TS TEFC 85.1 95.4 820
    HHI100-18-405TSBB 100 1800 203-230/460 405TS TEFC 114.1 95.4 1110
    HHI125-18-444TSBB 125 1800 203-230/460 444TS TEFC 142 95.4 1530
    HHI150-18-445TSBB 150 1800 460 445TS TEFC 163.8 95.8 1700
    HHI150-12-447TSBB 150 1200 460 447TS TEFC 169.5 95.8 1860
    HHI200-18-447TSBB 200 1800 460 447TS TEFC 222.4 96.2 1860
    HHI200-12-449TSBB 200 1200 460 449TS TEFC 231.2 95.8 2430
  • Factory F2 Mount Features

    • 25-200 HP
    • 1800 and 1200 RPM
    • 208-230/460 volt (25-125 HP)
    • 460 volt (150-200 HP)
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • Rigid base
    • Factory F2 mount
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (25-125 HP)
    • Suitable for wye-delta start (25-200 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324T-449T)
    • F1 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • Factory F2 Mount Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI25-18-284T-F2 25 1800 203-230/460 284T TEFC 30.3 93.6 380
    HHI30-18-286T-F2 30 1800 203-230/460 286T TEFC 36 93.6 410
    HHI40-18-324T-F2 40 1800 203-230/460 324T TEFC 48.8 94.1 550
    HHI50-18-326T-F2 50 1800 203-230/460 326T TEFC 59.9 94.5 560
    HHI60-18-364T-F2 60 1800 203-230/460 364T TEFC 69.9 95 780
    HHI75-18-365T-F2 75 1800 203-230/460 365T TEFC 85.1 95.4 820
    HHI75-12-405T-F2 75 1200 203-230/460 405T TEFC 87 94.5 1220
    HHI100-18-405T-F2 100 1800 203-230/460 405T TEFC 114.1 95.4 1110
    HHI125-18-444T-F2 125 1800 203-230/460 444T TEFC 142 95.4 1530
    HHI150-18-445T-F2 150 1800 460 445T TEFC 163.8 95.8 1700
    HHI150-12-447T-F2 150 1200 460 447T TEFC 169.5 95.8 1860
    HHI200-18-447T-F2 200 1800 460 447T TEFC 222.4 96.2 1860
    HHI200-12-449T-F2 200 1200 460 449T TEFC 231.2 95.8 2430
  • 575 Volt Features

    • 1-200 HP
    • 3600, 1800 and 1200 RPM
    • 575 volt
    • TEFC enclosure
    • Dual rated service factor: 1.15 for 40°C / 1.0 for 65°C
    • Class F insulation with Class N varnish
    • Rigid base
    • Premium Efficiency, meets or exceeds EISA 2007 requirements defined in NEMA MG-1 table 12-12
    • 5-year warranty
    • NEMA Design B
    • Cast iron frame and conduit box
    • Suitable for part winding start on low voltage (25-125 HP)
    • Suitable for wye-delta start (25-200 HP)
    • Inverter ready, 10:1 CT / 20:1 VT
    • Double drilled feet to accomodate mounting flexibility (324T-449T)
    • F2 field mountable
    • Class I, Division 2, Groups A, B, C, D
    • CC # 038A
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)
      - Please consult your mdi rep for 200 HP and above

  • 575 Volt Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    HHI1-18-575-143T 1 1800 575 143T TEFC 1.3 85.5 53
    HHI1.5-18-575-145T 1.5 1800 575 145T TEFC 1.8 86.5 55
    HHI2-18-575-145T 2 1800 575 145T TEFC 2.4 86.5 55
    HHI3-18-575-182T 3 1800 575 182T TEFC 3.1 89.5 90
    HHI5-36-575-184T 5 3600 575 184T TEFC 4.9 88.5 105
    HHI5-18-575-184T 5 1800 575 184T TEFC 5.2 89.5 105
    HHI5-12-575-215T 5 1200 575 215T TEFC 5.9 89.5 165
    HHI7.5-36-575-213T 7.5 3600 575 213T TEFC 7.2 89.5 150
    HHI7.5-18-575-213T 7.5 1800 575 213T TEFC 7.6 91.7 150
    HHI7.5-12-575-254T 7.5 1200 575 254T TEFC 8.2 91 260
    HHI10-18-575-215T 10 1800 575 215T TEFC 10.2 91.7 165
    HHI15-36-575-254T 15 3600 575 254T TEFC 13.5 91.7 260
    HHI15-18-575-254T 15 1800 575 254T TEFC 14.6 92.4 260
    HHI20-36-575-256T 20 3600 575 256T TEFC 18.5 91.7 300
    HHI20-18-575-256T 20 1800 575 256T TEFC 19.8 93 300
    HHI25-36-575-284TS 25 3600 575 284TS TEFC 22.8 91.7 380
    HHI25-18-575-284T 25 1800 575 284T TEFC 24.2 93.6 380
    HHI30-36-575-286TS 30 3600 575 286TS TEFC 27 91.7 410
    HHI30-18-575-286T 30 1800 575 286T TEFC 28.8 93.6 410
    HHI40-18-575-324T 40 1800 575 324T TEFC 39 94.1 550
    HHI50-36-575-326TS 50 3600 575 326TS TEFC 44.6 93 540
    HHI50-18-575-326T 50 1800 575 326T TEFC 47.9 94.5 560
    HHI60-36-575-364TS 60 3600 575 364TS TEFC 52.5 94.1 780
    HHI60-18-575-364T 60 1800 575 364T TEFC 56 95 780
    HHI75-18-575-365T 75 1800 575 365T TEFC 68.1 95.4 820
    HHI100-18-575-405T 100 1800 575 405T TEFC 91.3 95.4 1110
    HHI100-12-575-444T 100 1200 575 444T TEFC 93.3 95 1530
    HHI125-18-575-444T 125 1800 575 444T TEFC 113.6 95.4 1530
    HHI150-18-575-445T 150 1800 575 445T TEFC 131 95.8 1700
    HHI150-18-575-445TBB 150 1800 575 445T TEFC 131 95.8 1700
    HHI200-18-575-447T 200 1800 575 447T TEFC 177.9 96.2 1860

Manufacturers Distributor, Inc., Manufacturers Producers, Odessa, FL

Content © Copyright 2016 | Manufacturers Distributor, Inc. - mdi Sales
Site Use Acknowledges Acceptance of our Privacy Statement and our Terms of Service
