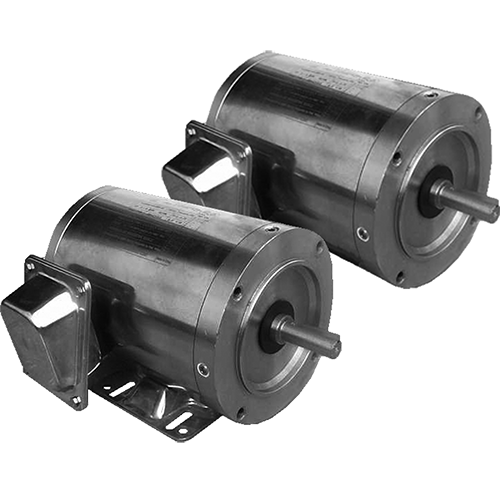

Stainless Steel/Washdown Duty - TENV
Fractional HP Motors
Select the following tabs to view the product data.
Click the model number for a model-specific downloadable PDF (when available).
-
Features
• 1/3-1 HP
• 1800 RPM
• 208-230/460 volt
• TENV enclosure
• 1.15 service factor
• Class F insulation
• C-face - rigid base and round body
• Double lip seals with an additional shaft slinger on the drive end
• O-rings installed on endbells to eliminate moisture
• Pre-installed watertight, stainless cord connector
• Inverter duty
• Suitable for 50hz operation with 1.0 service factor -
Technical Specifications
Model HP RPM Voltage Frame Enclosure Type FL Amps (A) FL Eff (%) Approx. Wt. (lbs) WSSNV13-18-56CB 1/3 1800 208-230/460 56C TENV Rigid Base 0.7 82.5 28 WSSNV12-18-56CB 1/2 1800 208-230/460 56C TENV Rigid Base 0.8 82.5 31 WSSNV34-18-56CB 3/4 1800 208-230/460 56C TENV Rigid Base 1.2 82.5 33 WSSNV1-18-56CB 1 1800 208-230/460 56C TENV Rigid Base 1.6 84 36 WSSNV13-18-56CRD 1/3 1800 208-230/460 56C TENV Round Body 0.7 82.5 28 WSSNV12-18-56CRD 1/2 1800 208-230/460 56C TENV Round Body 0.8 82.5 31 WSSNV34-18-56CRD 3/4 1800 208-230/460 56C TENV Round Body 1.2 82.5 33 WSSNV1-18-56CRD 1 1800 208-230/460 56C TENV Round Body 1.6 84 36
