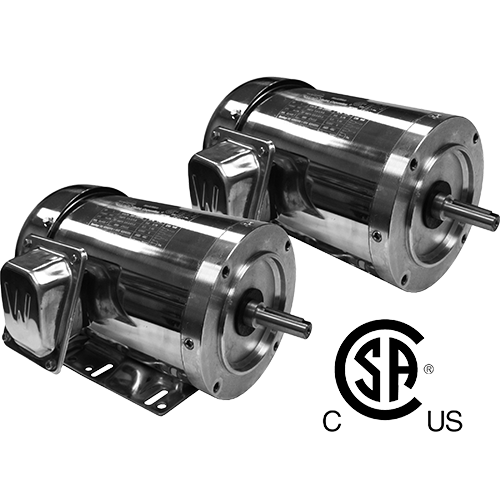

Stainless Steel/Washdown Duty - TEFC
Fractional HP Motors
Select the following tabs to view the product data.
Click the model number for a model-specific downloadable PDF (when available).
-
Features
• 1/3-2 HP
• 3600 and 1800 RPM
• 208-230/460 volt
• TEFC enclosure
• 1.15 service factor
• Class F insulation
• C-face - rigid base and round body
• Double lip seals on both ends of the motor with an additional shaft slinger on the drive end
• O-rings installed on endbells to eliminate moisture
• Pre-installed watertight, stainless cord connector
• Inverter duty
• Suitable for 50hz operation with 1.0 service factor -
Technical Specifications
Model HP RPM Voltage Frame Enclosure Type FL Amps (A) FL Eff (%) Approx. Wt. (lbs) WSS13-18-56CB 1/3 1800 208-230/460 56C TEFC Rigid Base 0.7 82.5 28 WSS12-36-56CB 1/2 3600 208-230/460 56C TEFC Rigid Base 0.9 77 29 WSS12-18-56CB 1/2 1800 208-230/460 56C TEFC Rigid Base 0.8 82.5 31 WSS34-36-56CB 3/4 3600 208-230/460 56C TEFC Rigid Base 1.2 73 33 WSS34-18-56CB 3/4 1800 208-230/460 56C TEFC Rigid Base 1.2 82.5 33 WSS1-36-56CB 1 3600 208-230/460 56C TEFC Rigid Base 1.5 80 35 WSS1-18-56CB 1 1800 208-230/460 56C TEFC Rigid Base 1.6 84 36 WSS1.5-36-56CB 1.5 3600 208-230/460 56C TEFC Rigid Base 2 84 39 WSS1.5-18-56CB 1.5 1800 208-230/460 56C TEFC Rigid Base 2.1 84 42 WSS2-36-56CB 2 3600 208-230/460 56C TEFC Rigid Base 2.4 80 46 WSS2-18-56CB 2 1800 208-230/460 56C TEFC Rigid Base 3 84 49 WSS13-18-56CRD 1/3 1800 208-230/460 56C TEFC Round Body 0.7 82.5 28 WSS12-18-56CRD 1/2 1800 208-230/460 56C TEFC Round Body 0.8 82.5 31 WSS34-18-56CRD 3/4 1800 208-230/460 56C TEFC Round Body 1.2 82.5 33 WSS1-18-56CRD 1 1800 208-230/460 56C TEFC Round Body 1.6 84 36 WSS1.5-18-56CRD 1.5 1800 208-230/460 56C TEFC Round Body 2.1 84 42 WSS2-18-56CRD 2 1800 208-230/460 56C TEFC Round Body 3 84 49
